/China Brand High Power Heli Forklift Cpcd25 Price
- USD 6000.15 /Unit
- 1 Unit
- 70 Unit
- 18 days

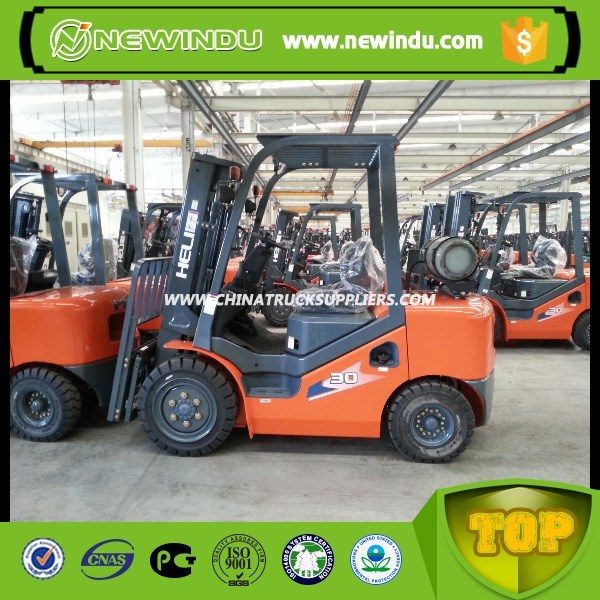

China brand high power HELI forklift CPCD25 price
Feature
Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Parameters
Manufacture | JJCC | ||||||||
General | Model | CPCD15 | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | ||
Power Type | Diesel | ||||||||
Rated Capacity | KG | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | ||
Dimension | Lift Height | mm | 3000(2-stage container) | 3000 | |||||
1200 | |||||||||
Fork Size | L*W*T | mm | 920*100*40 | 1070*120*40 | 1070*125*45 | 1070*140*50 | |||
Mast Tilt Angle | Front/Rear | Deg | 6/12 | ||||||
Overall Dimension | Length to face of fork(With fork) | mm | 2225 | 2430 | 2587 | 2742 | 2982 | 2990 | |
Overall Width | mm | 1070 | 1150 | 1150 | 1225 | 1250 | 1465 | ||
Mast Lowered Height | mm | 2005 | 2080 | 2080 | 2130 | 2130 | 2370 | ||
Mast Extend Height | mm | 3910 | 4010 | 4010 | 4250 | 4250 | 4094 | ||
Overhead Guard Height | mm | 2030 | 2090 | 2090 | 2140 | 2140 | 2370 | ||
Turning Radius | (Outside) | mm | 1955 | 2170 | 2240 | 2450 | 2650 | 2800 | |
Performance | Speed | Travel(Full load) | km/h | 14 | 20 | 19 | 20 | 22 | 19 |
Lifting(Full load) | mm/s | 500 | 450 | 450 | 400 | 400 | 420 | ||
Max.Gradeability | % | 20 | 20 | 19 | 20 | 20 | 15 | ||
Service Weight | kg | 2700 | 3340 | 3690 | 4200 | 4280 | 4500 | ||
Classis | Tyre | Front | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28*9-15-12PR | 28*9-15-12PR | 25-15-16PR | |
Rear | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
Wheelbase | mm | 1400 | 1600 | 1600 | 1700 | 1850 | 1900 | ||
Ground Clearance | mm | 110 | 115 | ||||||
Drive Unit | Battery | Voltage/Capacity | V/AH | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 |
Contact
Mobile: +86-18356287971Picture
Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,Dump Truck,road roller,forklift,reach stacker,and also including the spare parts,etc.
-
