Huahe 5ton Diesel Forklift Hh50z

FOB Price: USD 10000.00 /Unit
Min.Order: 1 Unit
Supply Ability: 97 Unit
Delivery time： 24 days

Product Description

HUAHE HH50Z-N1-D(VERTICAL EXAUST)- 5ton diesel

•High-end technical equip more perfect and high quality, the comfortable operation ...

•Simple comfortable operating system, the steering wheel be possible to adjust

•A broad operation field of vision

•Gate angle for the anteversion 6 degree caster 12 degrees...

•The stable antivibration device, around adjust chair user friendly design

Generals	Model		Unit	HH50Z
	Power type			Diesel
	Rated capacity		Kg	5000
	Load center		mm	600
Dimensions	Lift height		mm	3000
	Free lift height		mm	150
	Fork size (L× W× T)		mm	1220× 150× 65
	Mast inclination F/R		Deg	6° /12°
	Front overhang		mm	590
	Overall Dimensions	Length to face of fork	mm	2480
		Overall width	mm	2010
		Mast lowered height	mm	2625
		Overhead guard height	mm	2250
	Turning radius		mm	3370
	Min. right angle aisle width		mm	3755
Performance	Travel speed	Forward I	Km/h	13/12
		Forward II	Km/h	32/26
		Backward I	Km/h	13/12
	Lift speed		mm/s	600/400
	Max. grade ability		%	20
	Max. drawbar pull		Kn	40
	Self weight		Kg	8550
Wheels & Tires	Tires	Front		8.25-15-14PR
	Tires	Rear		8.25-15-14PR
	Tread	Front Q	mm	1470
	Tread	Rear S	mm	1700
	Wheelbase		mm	2250
	Min. ground clearance (unload/full load)	Mast	mm	175/145
	Min. ground clearance (unload/full load)	frame	mm	190/180
Drive units & Control	Battery		V/Ah	2-12V/90AH
	Engine	Model		PERKINS
		Rated output	Kw/rpm	83/2200
		Rated torque	N. m/rpm	/
		Displacement	cc	/
	Transmission	Type		Hydraulic
	Transmission	Shift Fwd/Rwd		2/1
	Operating pressure		Mpa	18

Product Images

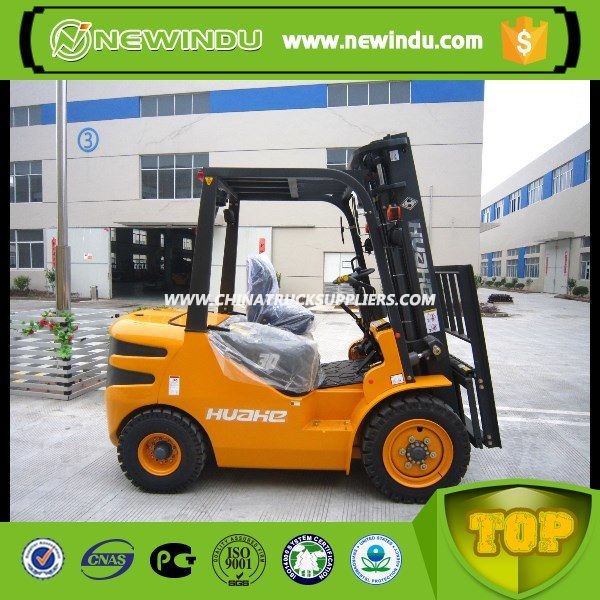

Huahe 5ton Diesel Forklift Hh50z Images 1
