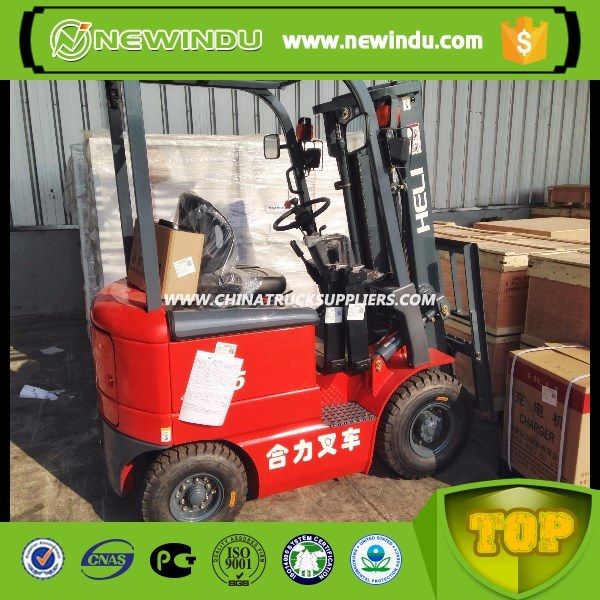

Heli Forklift Truck 3 Ton Cpcd30 Diesel Forklift for Sale

Heli forklift truck 3 ton CPCD30
1.High quality
2.Competitive price
3.Fast deli



Heli forklift truck 3 ton CPCD30

Performanceof the DieselForklift

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. HELI forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.

Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.

Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.

Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug.

Technical Parameterof the DieselForklift

Model		CPCD20	CPCD25	CPCD30	CPCD35	CPQD20	CPQD25	CPQD30	CPQD35
Power type		Diesel			Gasoline/LPG
Load capacity	kg	2000	2500	3000	3500	2000	2500	3000	3500
Load center	mm	500			500
Max. lifting height	mm	3000			3000
Overall length(without forks)	mm	2510	2580	2700	2770	2510	2580	2700	2770
Overall width	mm	1150	1150	1225	1285	1150	1150	1225	1285
Overall height(overhead guard)	mm	2140	2140	2170	2170	2140	2140	2170	2170
Min. turning radius	mm	2170	2240	2400	2420	2170	2240	2400	2420
Max. travel speed (with/without load)	Km/h	17/19	17/19	18/19	19/19	17/19	17/19	18/19	19/19
Service weight	kg	3480	3800	4400	5000	3480	3800	4400	5000

-------------------
