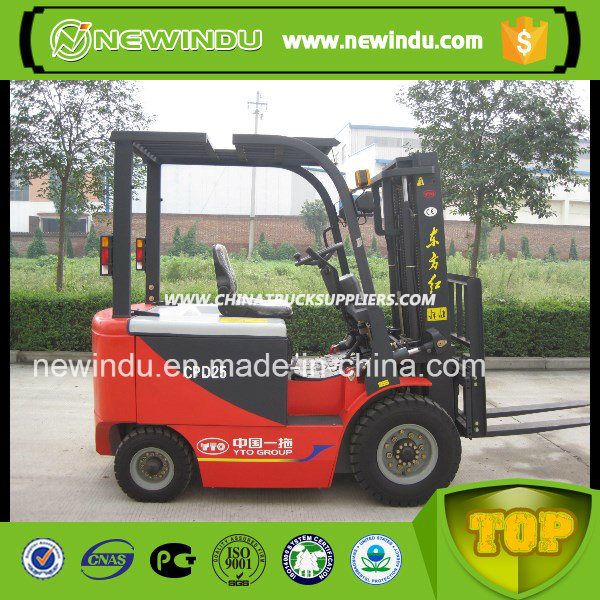

China Yto Battery Forklift Machine Cpd25 Price

Model

/

CPD25

Power type

/

Battery

Rated capacity

kg

2500

Load center

mm

500

Lift height

mm

3000

Mast tilt angle (forward/backward)

Deg

6/12

Front overhang

mm

483

Wheel-base

mm

1500

Tread(front/rear)

mm

970/950

Travel brake

/

Hydraulic-Foot pedal

Parking brake

/

Mechanical-Hand leverG

Lift speed(with/without load)

mm/s

260/400

Lower speed (with/without load)

mm/s

(with load)<600,(without load)>300

Travel speed (with/without load)

km/h

11/12

Max. gradeability (with load)

%

10

Motor

Driving motor(Model)

/

XQ-6.3-1T

Driving motor(Rated power)

kw

6.3

Driving motor(Rated rotation)

r/min

1200

Working motor

Working motor(Model)

/

XQD-8.6-C

Working motor(Rated power)

kw

8.6

Working motor(Rated rotation)

r/min

1550

Controller

Manufacturer

/

GE

Type

/

MOSFET

Battery

Voltage

v

48

Capacity

Ah

630

Size(L×W×H)

mm

820×1065×520

Gearbox

Transmission type

/

Mechanical

Tire

type

/

Pneumatic tyre

Model(Front)

/

7.00-12-12PR

Model(Rear)

/

18×7-8-14PR

Self.weight

kg

4240

Free lift height

mm

140

Fork (Thickness×Width×Length)

mm

40×125×1070

Min. turning radius

mm

2100

Overall dimensions : Overall length(without forks)

mm

2430

Overall dimensions : Overall width

mm

1150

Overall dimensions : Overall height(Extended height(mast)

mm

4030

Overall dimensions : Overall height(Lower height(mast))

mm

1995

Overall dimensions : Overall height(Overhead guard)

mm

2150

Min. under ground clearance : Under mast

mm

110

Min. under ground clearance : Center of wheel-base

mm

120
