China Front Reach Stacker Machine Srsc45gc Price

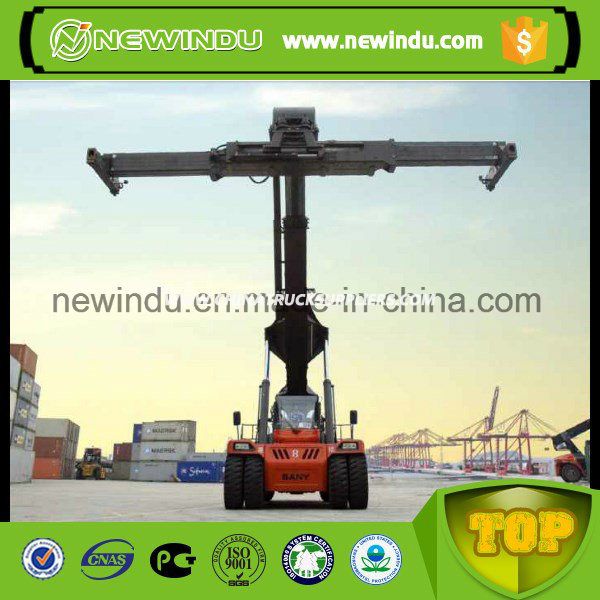

China front reach stacker machine SRSC45GC price

Feature

The SANY reach stacker SRSC45GC is mainly used in ports, wharfs and storage yards to handle, transfer and stack various containers and other materials. With many product series such as heavy, overweight hurdling, light, empty container and off-road reach stackers, SANY reach stacker SRSC45GC can accommodate various industries, bringing you the maximum economic benefit.

Safe and Reliable

Dynamic Anti-rollover Protection

Uses intelligent control technology to detect equipment's real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover, keeping you safe on the job.

Anti-collision Technology

By using intelligent control to regulate the positions of spreaders and booms, the reach stacker can effectively prevent collision among the spreader, frame and boom. This technology helps eliminate accidents by faulty operation.

Automatic Fire Extinguishing

The pipeline network has an automatic fire extinguisher with strong spray. It is capable of acting as a fire alarm, anti-flaming and fire extinguishing.

Solid Tire Suspension Technology

It features a solid tire flexible damping system to achieve safer operation and lower maintenance cost. Combined with flexible suspension technology, the technology significantly reduces the shocking load while raising operation comfort and prolonging component longevity.

Automatic Braking Technology upon Reversing

By using laser scanning and graphic identification technology, the machine can detect people or obstacles within the driving route with a high degree of precision. The reach stacker then brakes automatically to prevent accidents.

Reliable Structure Design

Featuring a joint Chinese-German design, the machine underwent a full-digit prototype design system. During development, the design underwent finite element analysis (FEA) and dynamics simulation analysis, as well as strict endurance and vibration tests.

Reliable Power System

Using world-famous engines, which combine advanced power matching and control technology, SANY equipment is optimized for dynamic performance. The engine and gearbox are protected, significantly prolonging their longevity.

High Efficiency

The intelligent controller monitors the boom's parameters in real-time, automatically adjusting the position of the boom to allow vertical lifting of the spreader. This technology makes stacking safer and improves work efficiency.

The centralized joystick's inching control has up to one millimeter of precision. All the spreaders' motions are under proportional control, providing an experience of man-machine unification. The machine also has a multi-motion linkage design to operate faster and more efficiently.

Comfortable Operation Environment

The operator-oriented design includes a wide viewing angle, and the controls are easily accessible.

Bulk Container Handling Technology

SANY's bulk reach stacker broke through the bottleneck of bulk container handling and simplified the handling process, dramatically improving work efficiency.

Energy Saving

The reach stacker features high precision flow control by automatically adjusting the pump displacement according to load. Because this system is much more precise, it drastically decreases the amount of energy wasted.

Dynamic Power Matching Control System

The machine features a dynamic power system that adjusts engine speed based on changes in load. The output power automatically accommodates loading and working conditions, reducing energy consumption.

Lighter Design

SANY has optimized the structure to make it lighter and stronger.

Parameters
Rated power
265/2100kW/rpm
Max.torque
1785/1260Nm/rpm
Emission standard
Stage
Transmission
DANA 15.5HR36000
Drive axle
Kessler D102 PL341
Tire
18.00-25 40PRPR
Model
SDJ450F
Side shift range
±800mm
Rotation angle
+105/-195deg
Self weight
7.8t
Application
ISO20'/40'/45'container
Max.lifting height
15100mm
Boom tilt angle
0~60 deg
Max.lifting speed (non-load/load)
420/250mm/s
Max.lowering speed (non-load/load)
360/300mm/s
Max.travel speed (non-load/load)
25/21km/h
Gradeability (non-load/load)
39/32%
Hydraulic system work pressure
260bar
Overall weight
74t
Max.load
45t
Stacking height
5 (9'6"/8'6")
Overall length
11258mm
Wheel base
6000mm
Overall height
4770mm
Min.ground clearance
350mm
Overall width
6053-12185mm
Front wheel width
3033mm
Rear wheel width
2790mm
Min.turning radius
8000mm
20"container aisle width
11300mm
40"container aisle width
13600mm
Weight motion distance
500mm
