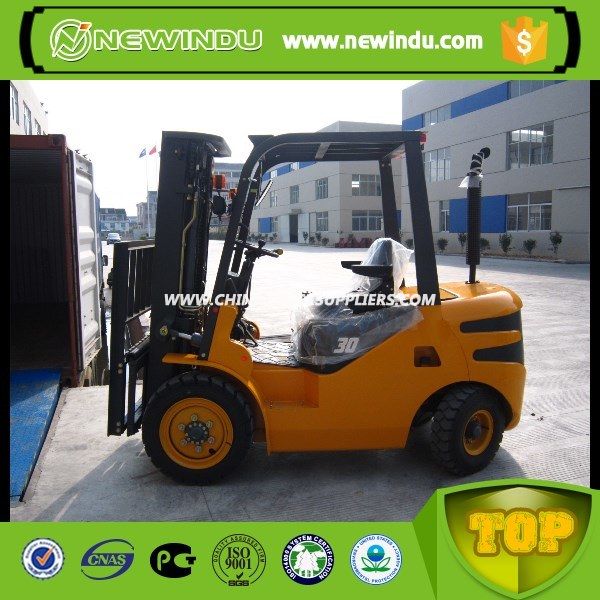

Hot Sale Hydraulic Manual Forklift for Sale

hot sale hydraulic manual forklift for sale

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:
hot sale hydraulic manual forklift for sale

Generals	Model		Unit	HH25	HH25Z
	Power type			Diesel
	Rated capacity		Kg	2500
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L× W× T)		mm	1070× 122× 40
	Mast inclination F/R		Deg	6° /12°
	Front overhang		mm	482
	Overall Dimensions	Length to face of fork	mm	2630
		Overall width	mm	1150
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2380
	Min. right angle aisle width		mm	2000
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	14
	Self weight		Kg	4020
Wheels &Tires	Tires	Front		7.00-12-12PR
		Rear		6.00-9-10PR
	Tread	Front Q	mm	970
		Rear S	mm	970
	Wheelbase		mm	1650
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		frame	mm	158/138
Drive units &Control	Battery		V/Ah	12/90
	Engine	Model		XINCHAI A490BPG
		Rated output	Kw/rpm	37/2650
		Rated torque	N. m/rpm	148/1800
		Displacement	cc	2540
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
