Product Description

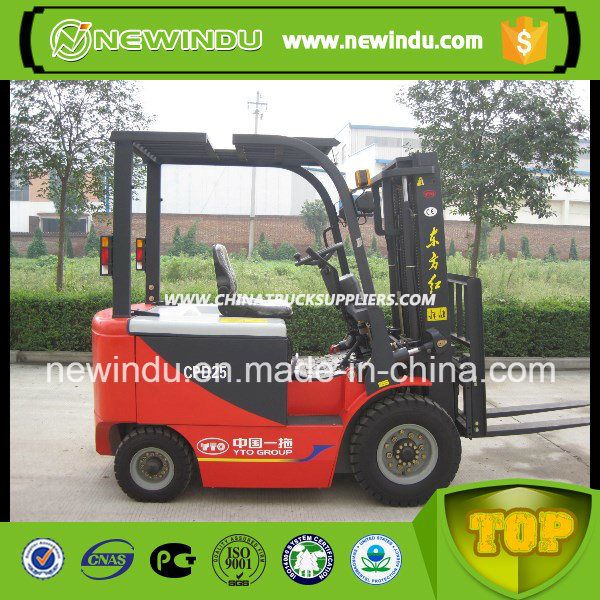

Chinese cheap YTO battery forklift machine CPD35 price
Feature
YTO 3.5 ton Battery Electric Forklift Truck CPD35
Rated capacity: 3.5 ton
low noise
no pollution
convenient operation
Parameters
| Speciality parameter | Model | CPD35 | ||||
| Power type | Battery | |||||
| Rated capacity | kg | 3500 | ||||
| Load center | d | mm | 500 | |||
| Lift height | h2 | mm | 3000 | |||
| Mast tilt angle(forward/backward) | α/β | Deg | 6/12 | |||
| Front overhang | L3 | mm | 486 | |||
| Wheel-base | L4 | mm | 1700 | |||
| Tread(front/rear) | b4/b5 | mm | 1000/970 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | ||||
| Parking brake | Mechanical-Hand level | |||||
| Lift speed(with/without load) | mm/s | 260/390 | ||||
| Lower speed(with/without load) | mm/s | laden<600,without load>300 | ||||
| Travel speed(with/without load) | km/h | 13/15 | ||||
| Max. gradeability(laden) | % | 10 | ||||
| Max.Towing(with/without load) | KN | 9.8/8 | ||||
| Weight Distribution with load(front/rear) | 7570/1180 | |||||
| Weight Distribution without load(front/rear) | 2230/3020 | |||||
| Power,transmission and others | Engine | Driving motor | Model | XQ-10-T | ||
| Reated power | kw | 10 | ||||
| Reated rotation | r/min | 1200 | ||||
| Working motor | Model | XQD-13-C | ||||
| Reated power | kw | 13 | ||||
| Reated rotation | r/min | 1550 | ||||
| Controller | Manufacturer | GE | ||||
| Type | MOSFET | |||||
| Battery | Voltage | V | 80 | |||
| Capacity | Ah | 560 | ||||
| Size(L×W×H) | mm | 830×1160×570 | ||||
| Gearbox | Transmission type | Mechanical | ||||
| Tyre | brake type | Pneumatic tyres | ||||
| Model | Front | 28×9-15-14PR | ||||
| Rear | 18×7-8-14PR | |||||
| Others | Dead.weight | kg | 5220 | |||
| Free lift height | h4 | mm | 165 | |||
| Fork | Thickness×Width×Length | c×b×a | mm | 45×125×1070 | ||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2650 | ||
| Overall width | b1 | mm | 1225 | |||
| Overall height | Extended height(mast) | h1 | mm | 4220 | ||
| Lowered height(mast) | h3 | mm | 2200 | |||
| Overhead guard | h7 | mm | 2250 | |||
| Min. turning radius | Wa | mm | 2350 | |||
| Min.under ground clearnce | Under mast | m1 | mm | 115 | ||
| Center of wheel-base | m2 | mm | 135 | |||
