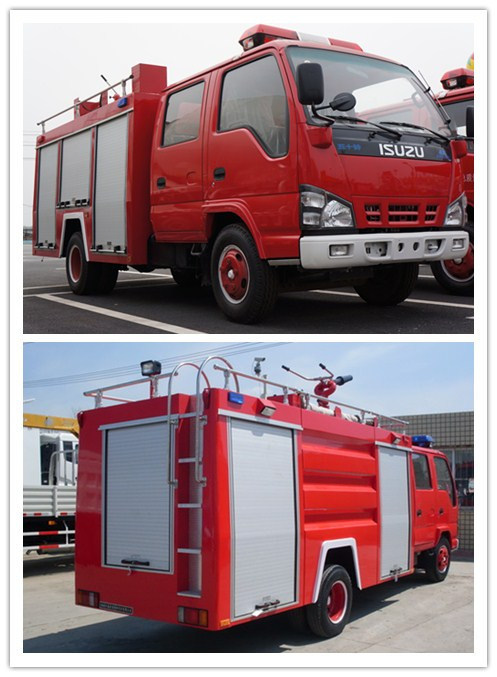

4*2 Isuzu Fire Fighting Trucks

4*2 Isuzu Fire Fighting Trucks
Product Description
Product Description:
1, equipped CB10/60 fire pump, equipped with PS50 type fire monitor
2, Low oil consumption with strong horse power 266HP
3. LHD or RHD are optional
4. Water capacity 5-8cbm


Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.


Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure vessel

FAQ

1.Payments:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.

Packaging &Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of ourFire FightingTruck, please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442
Technique Parameters

Description	ISUZU Water Fire Fighting Truck
Drive Model	4X2
Chassis	QL1050
Capacity	Water:2000L
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	6205X1900x2700
	Wheel base (mm)	3360
	Overhang (front/rear) (mm)	1015/1830
	Wheel track (front/rear) (mm)	1504/1425
	Approach/Departure angle(°)	24/13
Weight in KGS	GVW.	4085
	Curb Weight	2050
Max. driving speed(km/h)		90
Engine	Model	ISUZU Engine:4KH1-TC
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	130 HP
	engine capacity(ml)	2999
	Emission standard	EuroIII
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	150
Tire	7.00R15tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Cab	fourdoors,doublerow
Water tank material	high quality steel plate, antiseptic treatment
PTO	Type: Sandwich type (full power PTO). Handle: Manual control Cooling type: Forced water cooling, Splash lubrication
Piping Systerm	Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline
Fire Pump	1 .Tank capacity: 2000L 2 .Firepump model:CB10/20 3 .Theflowrate offirepump:20L/S 4 .Pressureoffirepump :1.0mpa 5 .FirecannonmodePS20 6 .Firecannonflow:20L/S 7.Water cannon shotrange :≥50m 8.Watercannonpressure:1.0Mpa
Other Equipment	1,one ingate, with fast lock and open device 2,one overflow safety device and air breather 3,one fluid level gauge 4,one drain outlet, with ball valve, stainless steel valve element 5,two water filling nozzle outside of the tanker 6,one inlet piping connect to water tank and pump

1.58 setsof military water trucks fornational defense
2.Dump trucksin support of theUnited Nations
3.Fuel tank trucksexported toSudan
4.78 sets of water truckexported toNigeria
5.Dump trucksexported to theIvory Coast, Kazakhstan
6.108setsof trucks exported toLibya
7.36 sets ofdump trucksexported tonorth America
8.218 setsof garbage trucks exported toWest Africa
9.60sets ofwater trucksexported toCongo
10. Garbage trucks exported toVietnam
11.98 sets of dump trucks exported toGhana

If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!

Contact Information

Sale Manager:Kitty Zhen

Tel/Fax : 00862783796298

Cell:0086-13872880590/13349909442

Website:truckcl.en.alibaba.com




we sincerely welcome you to visit our factory and provide your precious suggestion for us!
