XCMG 97kw New 180kn Horizontal Directional Drilling Rig Xz180

XCMG 97kw new 180kN Horizontal Directional Drilling rig XZ180
Features:
180kN of push-pull, 6000N.m of Max.spindle torque, motor dual speed chain push-pull system, self-propelled rubber
tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for
floating vice, and onboard high-capacity mud pump (250L/min)

Contact way:
Sales Manager
April Chen
Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 1326, Fortune Times Tower, No. 1438 North Shanxi Road, China
Mobile/WeChat/Whatsapp: +86-135 8550 0864

Our company:
Newindu E-commerce (Shanghai) Co., Ltd. is aleading Chinese construction machinery exporter, located in the downtown of Shanghai City. Since our company was founded, based on the advantage of XCMG which is the No. 1Chinese construction machinery manufacturer, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as Changlin, Zoomlion, LiuGong, HOWO, Shantui, HBXG, YTO, etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.

Out products:
1) ALL kinds of agricultural machinery
(road roller: single drum vibratory roller, tandem drum vibratory roller, pneumatic roller, light compactor, static three-drum roller. motor grader. asphalt concrete paver. cold mining machine. soil stabilizer. asphalt mixing plant. stabilized soil mixing plant ,etc)
2) All kinds of construction machinery.
(Wheel loader, excavator, truck, folklift, cranes, paver, road roller etc.)
3)All kinds of trucks
(truck crane, all terrain crane, rough terrain crane, crawler crane, truck-mounted crane, tower crane etc.)

Need more information? Just contact me please!

Parameters:

Model	XZ180
Engine	US imported engine
Rated power	97kW
Push-pull	Motor
Max.pullback/thrusting	180/180kN
Spindle torque(max)	6000N.m
Spindle speed	0~140r/min
Travelling speed of power head	20m/min
Backreaming diameter	Φ600mm
Pipe length(single)	3m
Pipe diameter	Φ60mm
Entry angle	10-22°
Mud flow ratw(max)	250L/min
Mud pressure(max)	80bar
Overall weight	8500kg
Dimension(LxWxH)	6400x2270x2340mm

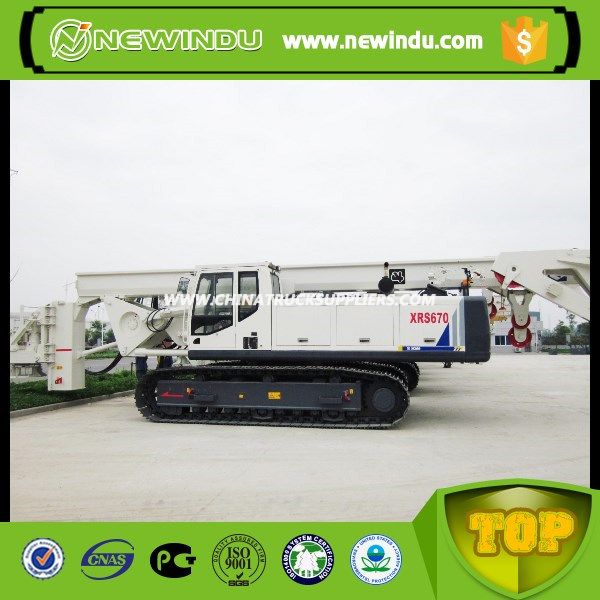

More pictures:
