360kn. M Sany Sy360III Rotary Drilling Rig

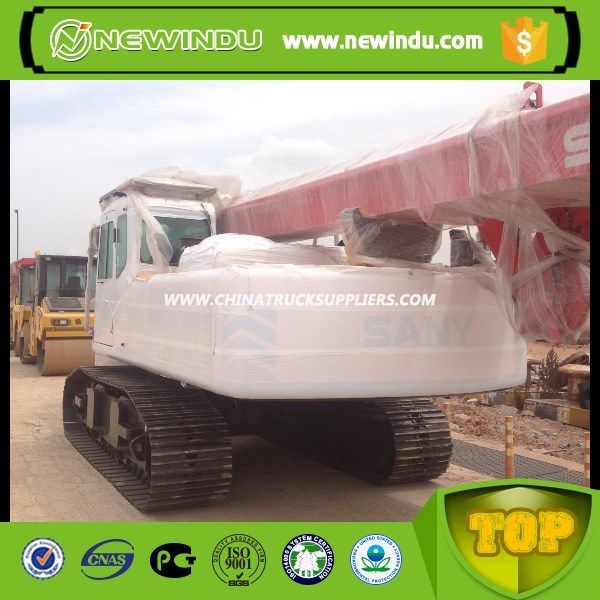

360kN.m SANY SY360III rotary drilling rig
Expert at super large bridge pile
High stability
Large triangle boom mechanism, the stability is increased by 12%.
Strong power
Maximum pile diameter of 2.5m, maximum drilling depth of 96m;
Self-adaption technology
Torque, rotation speed and crowd force can be matched automatically.
The new generation of rotary drive
Features long service life and great shock absorbing ability, the service life of Kelly bar is increased by 10%.
The new chassis
The engine output power is increased to 305KW. Great power, low vibration and high durability ensure high and reliable power.

Main performances
Overall height
26970mm
Operating weight
120t
Max. pile diameter
2500mm
Max. pile depth (friction bar)
96m
Max. pile depth (interlocking bar)
65m
Rotary drive
Max. output torque
360kN.m
Rotation speed
5~20rpm
Crowd system
Crowd force
320kN
Line pull
320kN
Stroke
8000mm
Winches
Main winch - line pull
390kN
Main winch - rope diameter
36mm
Main winch - max. line speed
60m/min
Auxiliary winch - line pull
90kN
Auxiliary winch - rope diameter
20mm
Auxiliary winch - max. line speed
70m/min
Mast inclination
Forward/Backward
15°
Lateral
±3°
Main parameters
Chassis model
CAT 349D
Chassis length
8093mm
Extended width
4400mm
Track shoe width
800mm
Swing radius (backside)
5100mm
Transport width
3000mm
Transport height
3450mm
base engine
CAT C-13
Engine power
305kW@1800rpm
Emission standard
EU stage 3/EPA Tier 3
