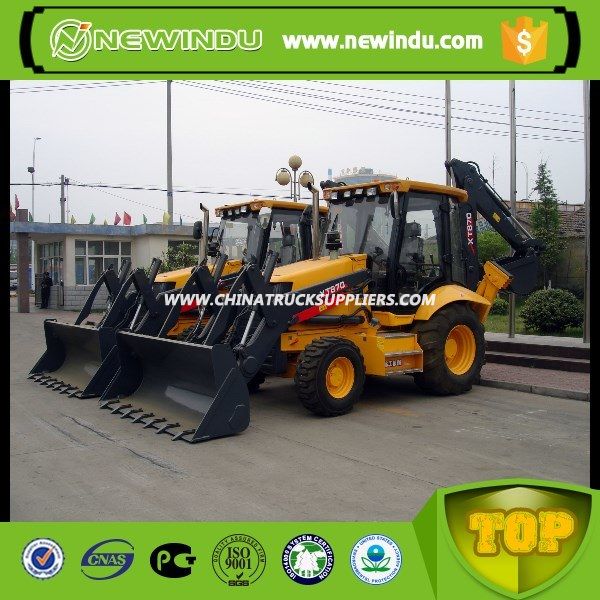

Manufacturer Xt870 Backhoe Loader for Sale

Manufacturer XT870 Backhoe Loader for sale

XT870
Rated Power:
70kW 94HP @2,200rpm
Operating Weight:
7,800kg 17,196lb
Bucket capacity:
1.0m3 1.3yd3
Max. Digging Depth:
4,400mm 14'5''
Dimensions(L×W×H):
7,173mmX2,400mmX3,437mm
23'7''X7'11''X11'3''



XT870
Excavating Loader XT870 is a kind of multifunctional construction machinery with following advantages: reasonable and compact layout, beautiful shape, comfortable and convenient operation, small turning radius, good work capability, and higher cost performance. It is widely used in municipal administration,
construction, oil field, water conservancy, forestry, military engineering, and other project construction. Also it can work on excavating,shovel loading, carrying, leveling and so on, which makes flexible and efficient operation on exclusions of waste dumps and industrial waste in largeand medium-side enterprises. It is a perfect machine to do variable works.
imported components such as boxes, bridges and hydraulic system improve the reliability of the machine.
High driving speed and small turning radius intergrated frame improves operatiing and driving stability. Steering priority hydraulic system with single-pump oil makes
system pressure reach 21Mpa, which improves the reliability of the machine.
The maximum speed is 40km / h, increasing machine productivity.
The cab have a good range of vision, with functions of sound insulation, heat insulation and shock absorption, improving the comfortablity of operating environment.
Operators can change the shift at work. Loading hopper is controled by the single swinging boom while excavating hopper by the double swinging booms. We focus on its excavating operation, so it has significantly improved the stability of the excavation in its structual design.

Description	Specifcations		Unit
Working weight	7800		kg
Overall dimensions(LxWxH)	7173x2400x3437		mm
Max.travel speed	40		Km/h
Wheel base	2180		Mm
Tuming radius	3780		Mm
Tires(F/R)	()14-17.5/()19.5L-24
Engine	Rated power	70	82	Kw
	Rated speed	2200	2200	r/min
	Model	TD226B-4IG2	CumminsQSB4.5
	Modality	,,	,,
	Overall displacement	4.156	4.5	L
	Adopt to efficient hydraulic system	230	235	g/kw.h
Loading installment	Bucket capacity(heaped)	1.0		m³
	Dumping clearance	2825		mm
	Dumping reach	727		mm
	Break-out force	42		KN
Excavation installment	Digger capcity	0.3		M³
	Max.digging depth	4000		mm
	Max.digging radium	5400		mm
Four in bucket and hydraulic hammer can be configured according to user needs

---------------
