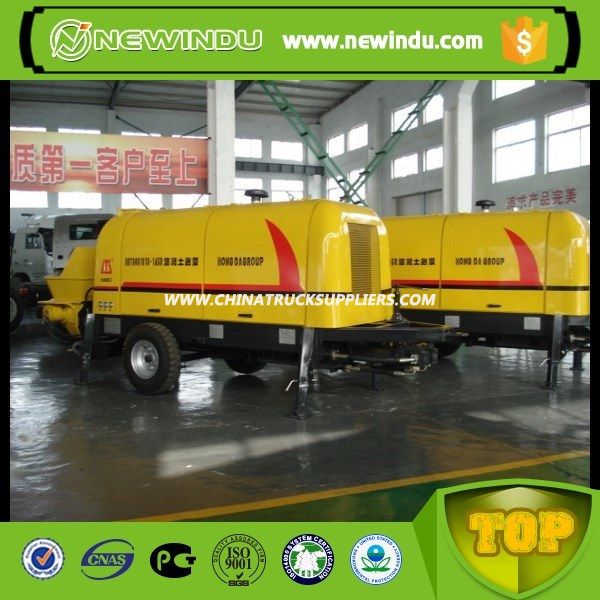

/Sany Hbt6006A-5 Mobile Trailer Concrete Pump on Promote Sale
- Price can be negotiated
- 1 Unit
- 89 Unit
- 8 days
High-efficiency pumping technology
Adopt pressure difference sensing & reversing technologyand main oil pump electric proportional control bufferingtechnology to shorten the reversing time, optimize the
main oil cylinder and swing cylinder buffering & reversingtime matching, and realize high-efficiency pumping.
Large-bore reversing cylinder
Adopt large-bore reversing cylinder, makingthe reversing powerful, and perfectly avoid
pipe blocking.
Large-power mixing motor
Forced feeding by large-displacement and large-torquesteel ball motor. Mix normally when there is aggregatedifference and the hopper is heightened. That will preventthe mixing motor from getting stuck and improve theaggregate absorbing performance.
New-type hopper
Optimize the hopper's inner cavity, improve the aggregate absorbingefficiency, and guard against aggregate inapplicability, and easily handlehigh-difficulty concrete.
Main Paarameters
| Model | HBT6006A-5 |
| Motor rated power | 75 kw |
| Max. delivery pressure Low/High pressure | 7Mpa |
| Max. concrete output Low/High pressure | 70 m3/h |
| Delivery cylinder Bore*Stroke | ∅200*1400 mm |
| Hopper capacity* Feeding height | 0.6*1415 m3/mm |
| Dimension(L*W*H) | 6590*2100*2100 mm |
| Gross weight | 5880 kg |
| Max. aggregate size ∅150mm delivery pipe | 50 mm |
| Max. aggregate size∅125mm delivery pipe | 40 mm |
| Type | Gate Valve |
| Slump of concrete | 100~230 mm |
