China Top Brand 37m Truck-Mounted Concrete Boom Pump Pipe Hb37K
- USD 187000.28 /Unit
- 1 Unit
- 53 Unit
- 30 days
Product Description

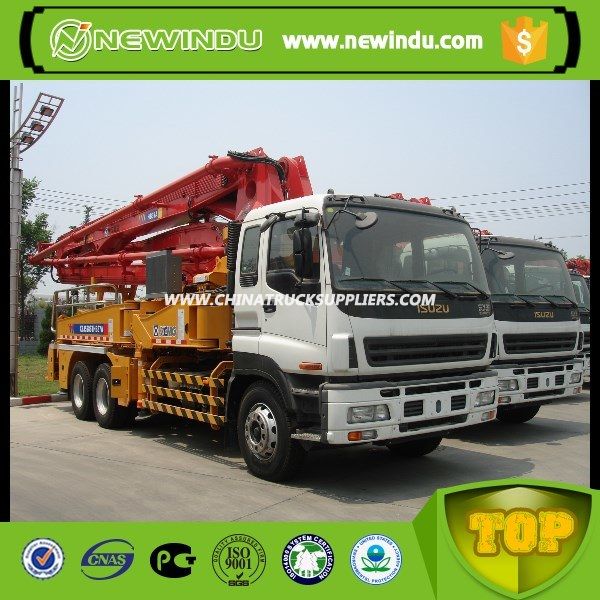

China top brand 37m Truck-mounted Concrete Boom Pump Pipe HB37K
Features:
Contact way:
Sales Manager
April Chen
Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 1326, Fortune Times Tower, No. 1438 North Shanxi Road, China
Mobile:+86-135 8550 0864
Web:http://www.evangelchina.com
Parameters:
More pictures:
Features:
HB37K (Iszu) are our factory truck mounted concrete pump independently developed next-generation k series truck mounted concrete pump with "safe, reliable, environmentally friendly, lead" quality leader in domestic and international advanced level of excellence.
Three bridge Iszu chassis for the CYZ51Q chassis, the chassis for the national phase III emission, high power, high torque, high efficiency and energy saving and off-road ability.
5 section Z-boom for optimal design of frame structure and hinge mechanism, with more space to a job, manipulation is more flexible, long life characteristics.
Contact way:
Sales Manager
April Chen
Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 1326, Fortune Times Tower, No. 1438 North Shanxi Road, China
Mobile:+86-135 8550 0864
Web:http://www.evangelchina.com
Parameters:
Item | Unit | Parameter |
Max. speed | km | 90 |
Min. turning diameter | m | 18.4 |
Brake distance | m | 7 |
Approach angle | ° | 31 |
Departure angle | ° | 12 |
Chassis model | CXZ51Q | |
Total weight | kg | 28150 |
1st axle load | kg | 6780 |
2nd, 3rd axle load | kg | 2120 |
Engine model | 6WF1 | |
Max. Engine power | kW | 287 |
Max. Engine torque | N.m | 1862 |
Max. grade-ability | % | 38 |
Fuel consumption limit | L/100km | 34 |
Outline dimensions (Length*Width*Height) | mm | 11990*2490*3900 |
Theoretical output | m3/h | 138/90 |
Max. delivery pressure | MPa | 8.7/13 |
Reach height | m | 37.4 |
Reach depth | m | 23.7 |
Front outrigger transverse span | mm | 7280 |
Rear outrigger transverse span | mm | 6600 |
Outrigger longitudinal span | mm | 6860 |
Delivery pipe diameter | mm | 125 |
Remote control distance | m | 100 |
Placing boom slewing range | ° | 370 |
More pictures:
Product Images
