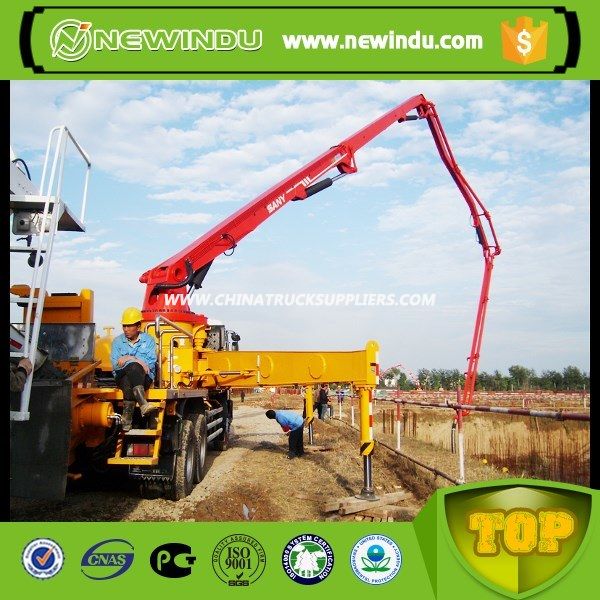

Low Price Concrete Mixer with Pump Truck Machine Sym5190thbdz 30

Low price concrete mixer with pump truck machine

Feature

One Button Stabilization Technology

The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.

Boom Anti Vibration Technology

The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.

Energy Saving Technology

With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.

Anti Overswing Technology

By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%

Fault Self Diagnostic Technology

Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.

Smart Boom System

One Button Boom Extend/Retract

Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.

Coordinated Section Operation

The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections

Safety Technology

Boom Overload Protection Technology

Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.

Hopper Screen Interlock Technology

As an operator protection measure, the pump will automatically stop when the hopper screen is opened.

Hydraulic Oil Level Monitoring

The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.

Parameters
Dimensions
Length
10650 mm
Width
2500 mm
Height
3700 mm
Empty weight
19000 kg
Boom & Outrigger
Vertical reach
30.1 m
Horizontal reach
26.5 m
Reach depth
15.2 m
Unfolding reach
9.6 m
1st section-Length
7676 mm
1st section-Articulation
89°
2nd section-Length
6090 mm
2nd section-Articulation
180°
3rd section-Length
6100 mm
3rd section-Articulation
245°
4th section-Length
6635 mm
4th section-Articulation
230°
Rotation
±360°
Outrigger spread L-R-Front
5850 mm
Outrigger spread L-R-Rear
5420 mm
Pumping System
Output (Low/High-pressure)
120 m³/h
Pressure (Low/High-pressure)
6 Mpa
Max. strokes per minute (Low/High-pressure)
30 times/min
Delivery cylinder diameter
230 mm
Stroke length
1600 mm
Hydraulic system
Open
Hydraulic system pressure
32 Mpa
Hydraulic tank capacity
320 L
Water tank capacity
400 L
Pipe size
125 mm
End hose length
3 m
End hose diameter
125 mm
Chassis
Chassis model
ZZ5207M521GD1
Engine model
MC07.24-40
Engine power
176/2300 kW/rpm
Emissions
Tier
Fuel tank capacity
300 L
Displacement
6.87 L
Max.speed
80 km/h
Brake distance
≤10/30m/km/h
