Road Compactor Liugong Vibratory Road Roller Clg610h

road compactor liugong vibratory road roller CLG610H

Contact way

Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description

Item			CLG610H Single Frequency	CLG610HDouble Frequency
Mass		Operating Mass(kg)	10100	10100
		Mass On Vibrating Drum(kg)	5450	5450
		Mass On Drive Axle(kg)	4650	4650
		Front Drum Static Linear Load (N/cm)	250	250
Compaction		Vibration Frequency(Hz)	33	32/33(2000rpm)
		Nominal Amplitude(mm)	1.8/1.2	1.8/1.2
		Centrifugal Force(kN)	270/170	270/170
		Drum Diameter(mm)	1500	1500
		Drum Width(mm)	2130	2130
		Drum Thickness(mm)	25	25
Drive		1st Maximum Speed,fwd(km/h)	6	6
		2nd Maximum Speed,fwd(km/h)	10.5	10.5
		3rd Maximum Speed,fwd(km/h)
		4th Maximum Speed,fwd(km/h)
		Theoretical Gradeability(%)	45	45
		Min. Ground Clearance(mm)	490	490
		Wheelbase(mm)	3000	3000
		Steering Angle(°)	±35	±35
		Swing angle(°)	±10	±10
		Min. Outside Turning Radius(mm)	6500	6500
		Tyre Type	23.1-26-12PR	23.1-26-12PR
		Tyre Pressure(kPa)	200-220	200-220
		Overall Length(mm)	5850	5850
		Overall Width(mm)	2280	2280
		Overall Height(mm)	3150	3150

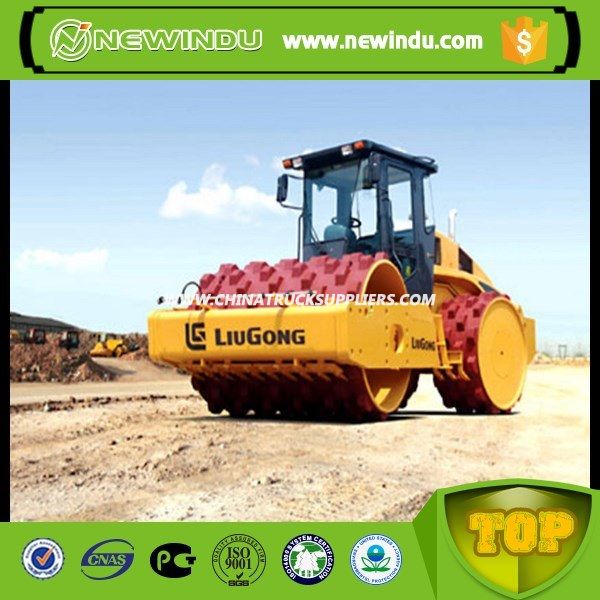

Product image
