Mechanical Hydraulic Roller Clg614 Hydraulic Vibratory Road Roller

mechanical hydraulic roller CLG614 hydraulic vibratory road roller

Contact way

Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile: +86-18616224775

Product description

Mass		Operating Mass(kg)	14000
		Mass On Vibrating Drum(kg)	7150
		Mass On Drive Axle(kg)	6850
		Front Drum Static Linear Load (N/cm)	328
Compaction		Vibration Frequency(Hz)	30
		Nominal Amplitude(mm)	1.75/0.85
		Centrifugal Force(kN)	270/135
		Drum Diameter(mm)	1500
		Drum Width(mm)	2130
		Drum Thickness(mm)	30
Drive		1st Maximum Speed,fwd(km/h)	2.6
		2nd Maximum Speed,fwd(km/h)	5.2
		3rd Maximum Speed,fwd(km/h)	11
		4th Maximum Speed,fwd(km/h)
		Theoretical Gradeability(%)	30
		Min. Ground Clearance(mm)	430
		Wheelbase(mm)	3100
		Steering Angle(°)	±35
		Swing angle(°)	±10
		Min. Outside Turning Radius(mm)	6500
		Tyre Type	20.5-25-16PR
		Tyre Pressure(kPa)	300-330
		Overall Length(mm)	6145
		Overall Width(mm)	2300
		Overall Height(mm)	3040

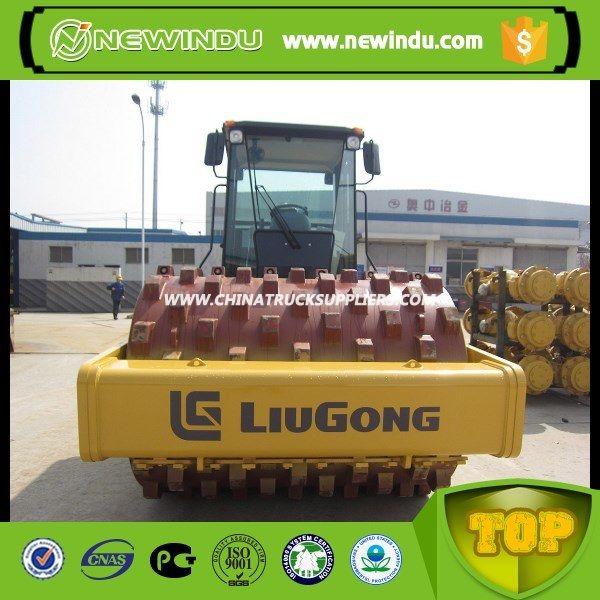

Product image
