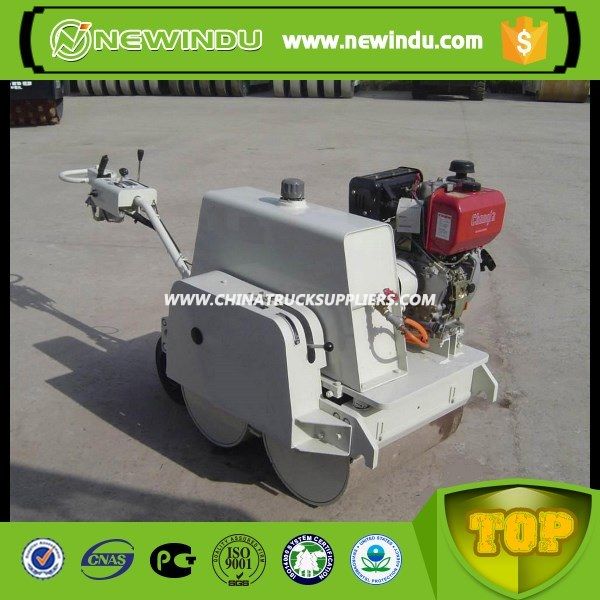

Lutong Walking Behind Vibratory Road Roller

LUTONGLTC08H Small Hydraulic walking behind vibratory road roller

LTCO8HZ Hydraulic walking behind vibratory road roller can be used for muncipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, backfiling for pipeline and stadium ground.

Main Features
The whole machine has a nice shape. Compact structure and small size; it can do rolling work in narrow ground
all wheel drive,strong climbing ability;
Using CF186F veritical direct-spray air -cooled engine,with both electrical and manual startup devices;
Desigend with guide wheel and joystick, it is labor saving and easy to control.
Hydraulic travel, adopt imported punp & starting motor, CVT.

Main Technical Parameters

MODEL		LTC08H	LTC08HZ
Operating mass	Kg	770	800
Static linear load	N/cm	62/62	62/67
Vibration amplitude	Mm	0.25	0.25
Vibration frequency	Hz	48	48
Centrifugal force	Kn	12	12
Travel speed	Km/h	0-4	0-4
Grade ability	%	40	30
Turning speed	mm	2700	3300
Turning angle	.	±30	±30
Overall dimension	Mm	2400*880*1100	1965*880*1290
Vibration drum diameter	Mm	400	400
Drum width	Mm	600	600
Wheelbase	Mm	470	470
Diesel power/model	Kw	5.68/CF186F	5.68/CF186F
Water tank capacity	L	32	32
