XCMG Gr135 Motor Grader Sale in Philippines

XCMG GR135 Motor Grader Sale in Philippines
GR135GR135C grader is mainly adopted in large-area ground leveling of highway, airport, farmland, etc. as well as operations such as ditch digging, slope scraping, soil bulldozing, soil loosening and snow removal. It is a kind of essential engineering machinery for national defense construction, mine construction, urban & rural road construction as well as water conservancy construction and farmland improvement.

Basic specification
Engine model	6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11200kg
Performance specification
Travelling speed ,forward	5,8,13,20,30,42km/h
Travelling speed ,reverse	5,13,30km/h
Tractive force(f=0.75)	61.3KN
Max. gradeability	30%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
frame articulation angle	±27°
Min. turning radius using articulation	6.6m
Biade
Maximum lift above ground	410mm
Maximum depth of cutting	515mm
Maximum blade position angle	90°
Blade cutting angle	54°-90°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm

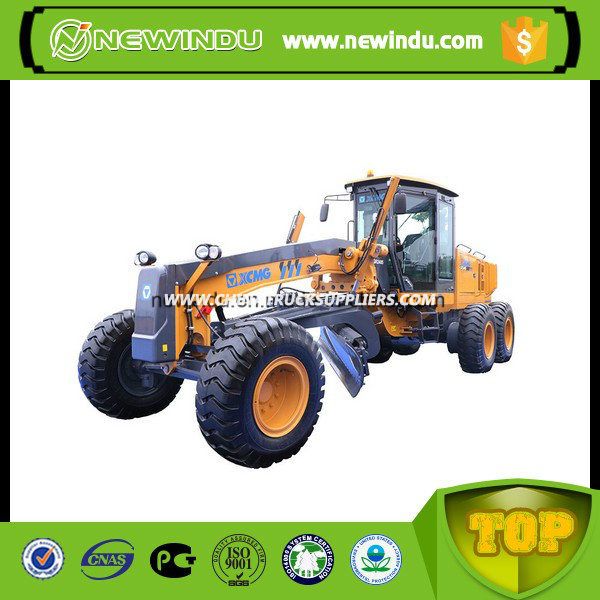

More Pictures for XCMG GR135 Motor Grader:






Newindu E-commerce (Shanghai) Co.,Ltd. is an official dealer and authorized exporter of all kinds ofconstruction machinery solutions, including wheel loaders, bulldozers, excavators, and backhoe loaders,also we specilize in handling machinery such as forklifts, skid steer loaders, tlescopic handlers,reach
stackers, mini loaders with various attahments etc.We cooperate with XCMG,Sany etc,some big companies,our company has been authorized. We welcome you to inspect machines and visit manufactuer factories.

Contact Way
Tel: +8618317132369
