Chinese XCMG Gr230 230HP Motor Grader

Chinese XCMG GR230 230HP Motor Grader

Model	GR230
Engine Model	6CTA8.3-C230
Rated Power/Speed	172/2200kw/rpm
Dimension(L*W*H)	8970*2625*3470mm
Operating Weight	16500kg

Main Performance

Travelling Speed(forward)	5,8,11,19,23,38km/h
Travelling Speed(reverse)	5,11,23km/h
Tractive Force(f=0.75)	90kN
Max.Gradeability	30%
Tire Inflation Pressure	260MPa
Working Hydraulic Pressure	18MPa
Transmission Pressure	1.3-1.8MPa

Operating Specification

Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
frame articulation angle	±27°
Min. turning radius using articulation	7.3m

Biade

Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	4270*610mm

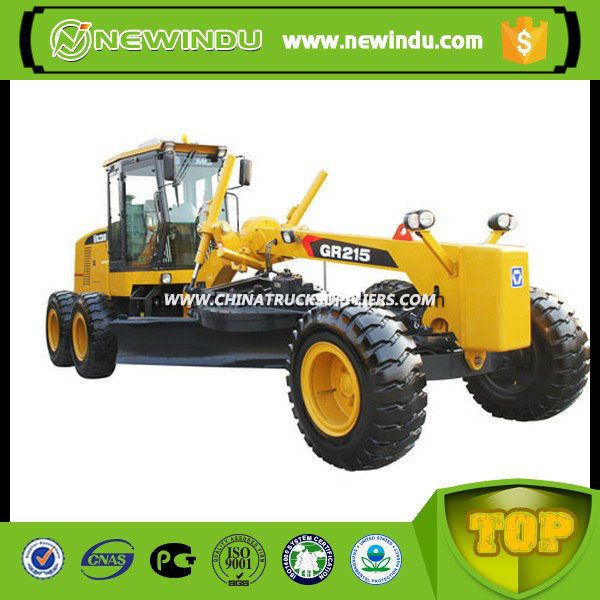

More Pictures for XCMG GR230 Motor Grader:






Newindu E-commerce (Shanghai) Co.,Ltd. is an official dealer and authorized exporter of all kinds ofconstruction machinery solutions, including wheel loaders, bulldozers, excavators, and backhoe loaders,also we specilize in handling machinery such as forklifts, skid steer loaders, tlescopic handlers,reach
stackers, mini loaders with various attahments etc.We cooperate with XCMG,Sany etc,some big companies,our company has been authorized. We welcome you to inspect machines and visit manufactuer factories.
