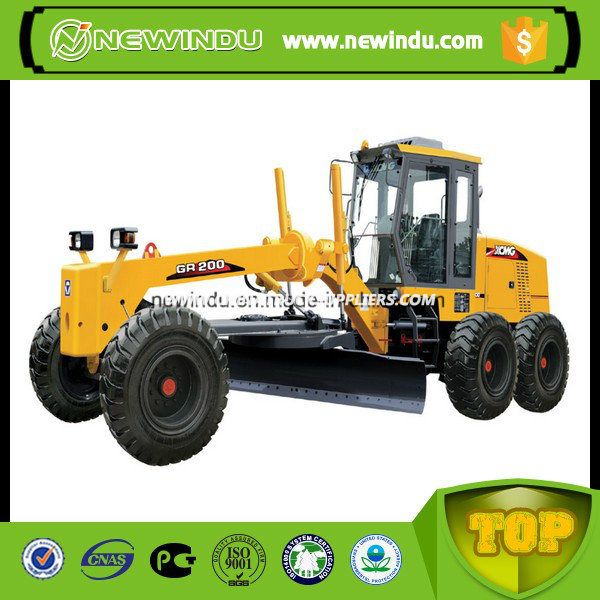

XCMG Gr200 200HP Motor Grader

XCMG GR200 200HP Motor Grader

Basic specification
Engine model	D6114 ZG14B
Rated power/speed	147kW/2200rpm
Dimension(LxWxH)	8932×2625×3470mm
Operating weight(Standard)	16000kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	82KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm

More Pictures for XCMG GR165 Motor Grader:
