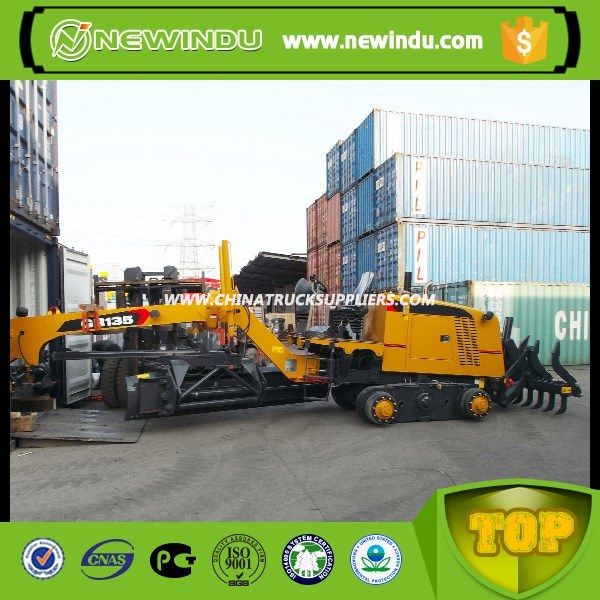

XCMG Gr135 130HP Motor Grader with Ripper

Famous GR135 Model Small Motor Grader Main Feature:

Brake SystemThe travelling brake system adopts the hydraulic components of Rexroth (Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.

Steering system:Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe,with the articulated frame, to achive easy and flexible steering.

ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.

Cabinwith wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.

Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.

Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled Geriman gearbox, so it is quite easy to make any operation.

Transmission: Adopting with auto-lock/unlock NO-SPIN anti-slide differential, heavy-duty balance box, heavy-duty roller chain transmisson, all of which make sure the transmission system being stable.

Basic specification
Engine model	6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11000kg
Performance specification
Travelling speed ,forward	5,8,13,20,30,42km/h
Travelling speed ,reverse	5,13,30km/h
Tractive force(f=0.75)	61.3KN
Max. gradeability	20%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
frame articulation angle	±27°
Min. turning radius using articulation	6.6m
Biade
Maximum lift above ground	410mm
Maximum depth of cutting	535mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm
