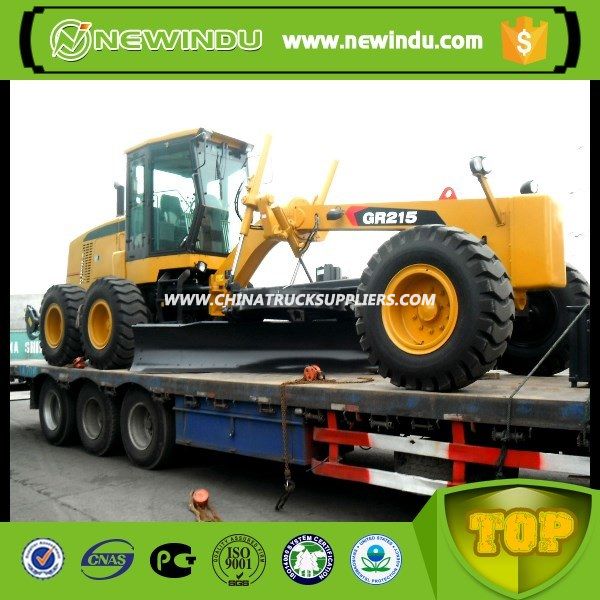

XCMG Gr215 Motor Grader 215HP with Scarifier
- USD 75000.00 /Unit
- 1 Unit
- 44 Unit
- 10 days
XCMG Famous GR215Model Small 215hp Motor Grader Main Feature:
Brake SystemThe travelling brake system adopts the hydraulic components of Rexroth (Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.
Steering system:Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe,with the articulated frame, to achive easy and flexible steering.
ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.
Cabinwith wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.
Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled Geriman gearbox, so it is quite easy to make any operation.
Transmission: Adopting with auto-lock/unlock NO-SPIN anti-slide differential, heavy-duty balance box, heavy-duty roller chain transmisson, all of which make sure the transmission system being stable.
Basic specification | |
---|---|
Engine model | 6CTAA8.3 6CTA8.3 |
Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
Dimension(LxWxH) | 8970×2625×3470mm |
Operating weight(Standard) | 16500kg |
Performance specification | |
Travelling speed ,forward | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 82KN |
Max. gradeability | 20% |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 16 MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Biade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°-70° |
Circle reversing rotation | 360° |
Moldboard width X height | 4270×610mm |
