Xcm New Mini Gr200 Motor Grader for Sale

  • Xcm New Mini Gr200 Motor Grader for Sale
  • USD 35000.00 /Unit
  • 1 Unit
  • 77 Unit
  • 9 days
Product Description
xcm new mini GR200 motor grader for sale
Contact way:

Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.evangelchina.com

Product description:
xcm new mini GR200 motor grader for sale

Basic specification

Engine model6BT5.9
Rated power/speed100/2200kw/rpm
Dimension(LxWxH)8015×2380×3050mm
Operating weight(Standard)11000kg

Performance specification

Travelling speed ,forward5,8,13,20,30,42km/h
Travelling speed ,reverse5,13,30km/h
Tractive force(f=0.75)61.3KN
Max. gradeability20%
Tire inflation pressure300kPa
Working hydraulic pressure16MPa
Transmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±49°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box16
frame articulation angle±27°
Min. turning radius using articulation6.6m

Biade

Maximum lift above ground410mm
Maximum depth of cutting535mm
Maximum blade position angle90°
Blade cutting angle28°-70°
Circle reversing rotation360°
Moldboard width Xheight3710×610mm

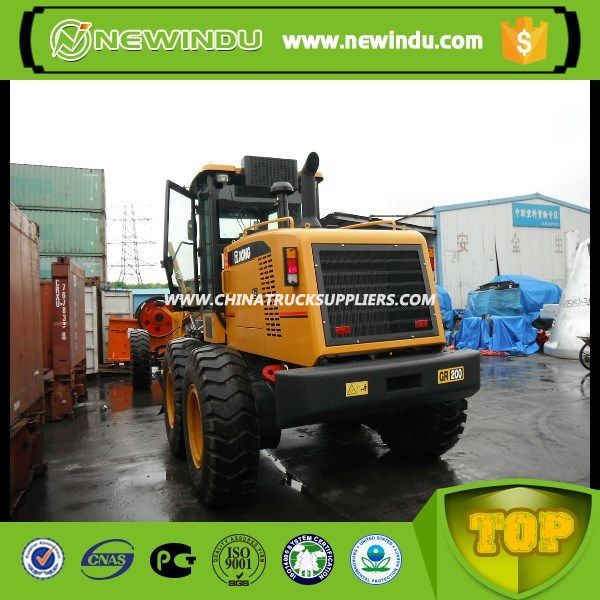

product image:

Xcm New Mini Gr200 Motor Grader for Sale
Xcm New Mini Gr200 Motor Grader for Sale
Xcm New Mini Gr200 Motor Grader for Sale
Xcm New Mini Gr200 Motor Grader for Sale













Product Images
Xcm New Mini Gr200 Motor Grader for Sale Images 1
