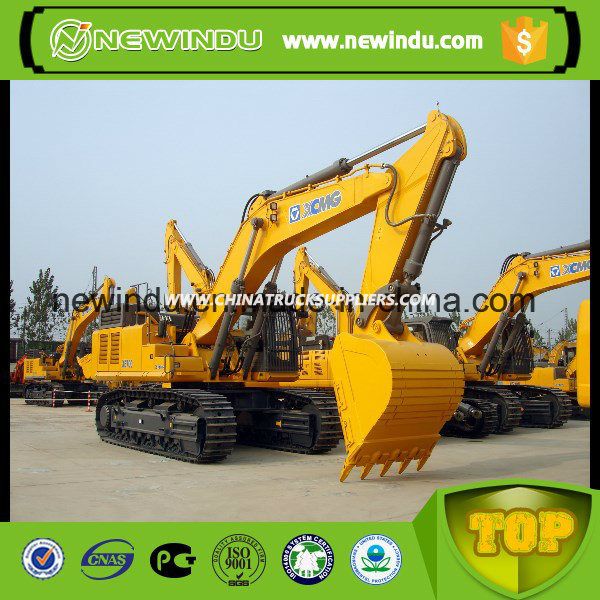

Chinese Best Selling Large Excavator Xe470c with Low Price

Chinese best selling large Excavator XE470C with low price

Feature

Thehigh-endconfiguration,performanceexcellence.

astrongdrivingforce,lownoise,lowfuelconsumption,morereliable.

Theadvancedhydraulicsystemforenergysaving,thekeyhydrauliccomponentsaretheinternationalwellknownbrandmanufacturersimported,qualityofproductscanbeagoodguarantee;combinedwiththelatestresearchresults,lowenergyconsumption,fastresponsespeed,controlprecision,theimpactissmall,canmaintainastrongminingcapacityandexcellentoperationefficiency.

Parameters

Model		Unit	XE470C
Operating weight		kg	46100
Standard bucket capacity		m³	1.9-2.3
Engine	Engine Model	/	QSM11
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	250/2000
	Max. torque/speed	N.m	1790/1400
	Displacement	L	11
Main Parameter	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9
	Max. gradeability	/	≥30
	Ground pressure	kPa	82.7
	Max.Bucket digging force	kN	271
	Max.arm crowd force	kN	231
	Max.traction force	kN	338
Hydraulic	Main pump	/	two
	Rate flow of main pump	L/min	2×360
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28.4
	Max pressure of pilot system	MPa	3.9
Oil & Fuel refilling	Fuel tank capacity	L	650
	Hydraulic tank capacity	L	360
	Engine lubrication	L	38
Dimensions	Overall length	mm	12030
	Overall width	mm	3580
	Overall height	mm	3842
	Overall width of upperstructure	mm	2995
	Track length	mm	5220
	Overall width of undercarriage	mm	3580
	Crawer width	mm	600
	Track length on ground	mm	4180
	Crawer gauge	mm	2392/2890
	Clearance under counter weight	mm	1360
	Ground clearance	mm	703
	Min.tail swing radius	mm	3665
Working Range	Max. digging height	mm	10675
	Max. dumping height	mm	7409
	Max. digging depth	mm	7337
	8inch horizonal digging depth	mm	7117
	Max. vertical wall digging depth	mm	5225
	Max. digging reach	mm	11631
	Min. swing radius	mm	4909
	Angle of arm deflection	Degree
