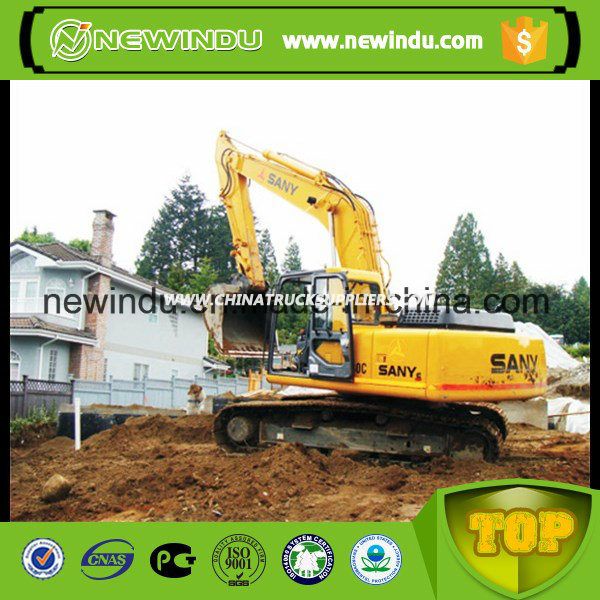

Chinese New Front Crawler Excavator Machinery Sy305h for Sale

Chinese new front crawler Excavator Machinery SY305H for sale

Feature

High efficiency and low consumption

The Isuzu GH-6HK1 Engine with Tier 3 emission standard adopts the brand new controller to realize real-time precise fuel injection, making the fuel burn more sufficiently. Under same working environment, the fuel consumption reduces by over 10 percent.

The self-developed DOMCS dynamic optimized intelligent control system realizes the perfect match of the engine and the main pump, making the movement more fast and also prolonging the service life.

High reliability

The customized key components by global well-known brands, passing endurance test, adapt to various rough working environment.

Users'friendly design

The brand-new damping system, cab with extra-large view, strengthened noise reduction design, greatly improve the operation experience.

Parameters

Engine
Engine model
Isuzu GH-6HK1
Rated power
212/2000kW/rpm
Emission standard
Tier 3
Operation Range
Operating weight
32800kg
Max. digging height
10100mm
Max. dumping height
7025mm
Max. digging depth
7410mm
Max. vertical digging depth
6170mm
Max. digging reach
11050mm
Min. swing radius
4450mm
Height at min.swing radius
8500mm
Dimensions
Transport length
11100mm
Transport width
3190mm
Transport height
3600mm
Upper width
3145mm
Cab height
3085mm
Tail swing radius
3300mm
Undercarriage/Working Device
Std. track shoe width
600mm
Bucket capacity
1.4m³
Track shoes(per side)
47
Upper rollers
2
Lower rollers
8
Track gauge
2590mm
Track length
4870mm
Boom length
6.47m
Arm length
3.2m
Performance
Travel speed
5.2/3.4km/h
Swing speed
9.5rpm
Gradeability
70%/35°
Ground pressure
59.6kPa
Tractive force
270kN
Bucket digging force
220kN
Arm digging force
170kN
Service Refill Capacities
Fuel tank
540L
Hyd tank
380L
Engine oil
35L
Engine coolant
31.9L
