Product description:

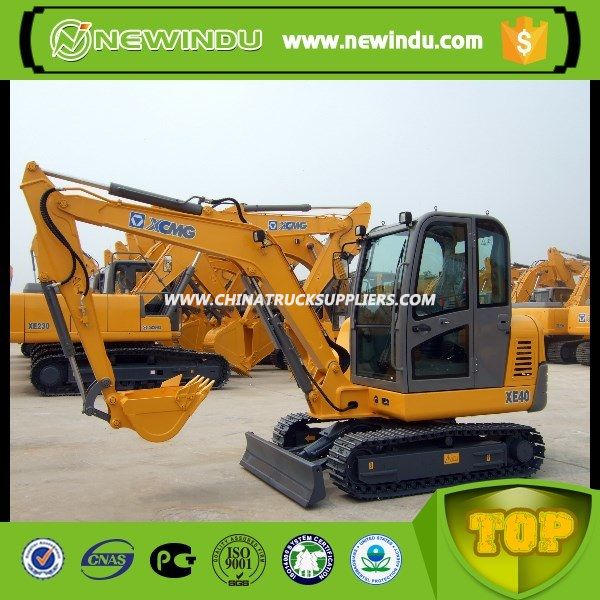

Hot Selling Mini 4ton Excavator Construction Equipment

Model	Operating weight	Kg	4050
	Bucket capacity	M³	0.14
	Engine model	/	4TNV88
	Direct injection	/	√
	4x strokes	/	√
Engine	Water cooling	/	√
	Cylinders	/	4
	Output power of engine	KW/rpm	27.6/2200
	Max torque/speed	N.m/rpm	142/1320
	Displacement	L	2.19
	Travel speed	Km/h	4.2/2.6
	Slewing speed	r/min	13.5
Main	Gradient capability	°	30°
performance	Ground pressure	kPa	36.3
	Digging capacity of bucket	KN	23.2
	Digging capacity of bucket rod	KN	19.3
	Max traction force	KN	33.9
	Rated flow of main pump	L/min	1x110+11
Hydraulic	Pressure of main sadety valve	MPa	21
system	Pressure of traveling system	MPa	21
	Pressure of swing system	MPa	21
	Pressure of pilot system	MPa	3.9
	Fuel tank capacity	L	65
Oil volume	Hydraulic tank capacity	L	70
	Engine oil volume	L	7.4
		Unit	Parameters
	ATotal length	mm	5455
	BTotal width	mm	1650
	CTotal height	mm	2440
	DWidth of rotary table	mm	1500
Apperance	ETotal width of chassis	mm	1635
Size	FTrack width	mm	300
	GTread	mm	1721
	HTrack gauge	mm	1335
	IGround clwaranance of counterweight	mm	578
	JMin.ground clearance	mm	350
	Dozer blade(width/height)	mm	1650x300
	AMax.digging height	mm	5317
	BMax unloading height	mm	3700
	CMax digging depth	mm	3600
