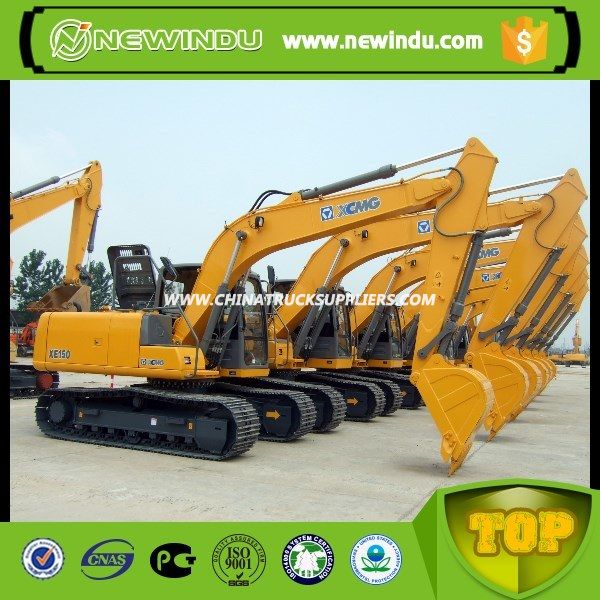

Cheap Hydraulic Xe150 Small Crawler Excavator

MAIN DIMENSIONS

UNIT

DK150

(Operating Weight)

kg

15000

(Overall Dimension)

mm

7730 x 2510 x2750

(Cab Dimension)

mm

1750 x1000 x1600

(Bucket Capacity)

cbm

0.6

SYSTEM CONFIGURATION

(Rated Power/Speed)

kw

93

(No. of Cylinders/Type)

4 cylinder / in line

(Hydraulic System Pressure)

MPa

35

(Hydraulic System Flow)

L/min

168

(Speed)

km/h

H 4.5km/h , L3.0/km/h

(Bucket Digging Force)

Kn

100

(Arm Digging Force)

Kn

89.5

OPERATIONRANGE

(Boom Length)

mm

4600

(Arm Length)

mm

3280

(Max Digging Height)

mm

8480

(Max Dumping Height)

mm

6180

(Max Digging Depth)

mm

5000

(Max Digging Radius)

mm

8100
