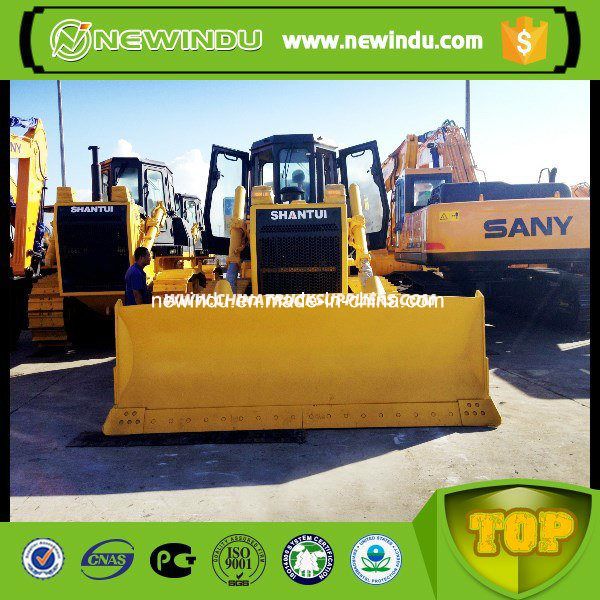

Shantui 170 HP Full-Hydraulic Bulldozer Dh17

Shantui 170 HP Full-Hydraulic Bulldozer Dh17

DH17 is anew generation full-hydraulic bulldozer. The two-circuit electronically controlled static pressure drive system can intelligently adapt to the load variation and realize steering and pivot steering under loaded condition, featuring high working flexibility and efficiency and low fuel consumption. The hydraulic pilot control for the working device features simple and sensitive operations. The sealed shock-absorbing cab features large space, high safety and comfort.

[Product Parameter]

Ground pressure(Mpa)	0.064
Min.turning radius(m)	3745
Gradeablity (°)	30
Engine Model	Weichai WP10G190E354(CHINA III); Weichai WD10G190E214(CHINA II)
Rated horsepower(Kw)	127
Forward(km/h)	10
Reverse(km/h)	10
Carrier rollers	2
Track rollers	7
Track type	Standard
Width of track shoes(mm)	560/610
Dozing capacity (m³)	4.5
Blade height(mm)	1149
Max.drop below ground(mm)	520
Ripper type	Three-shank ripper
Max. digging depth(mm)	475
L*W*H(Ripper not included)(mm)	5250x3420x3080

[Product Strengths]1.The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.

2.The safety passage system of the whole machine guarantees the driver's safety.

3.With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.

4.The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.

5.The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.

6.The accurate control can realize the bulldozing operations in narrow spaces.

7.The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.

8.The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.

9.The structural parts inherit the excellent quality of Shantui mature products.

10.The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.

11.The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.

12.The static drive system features compact structure, small volume, light weight, and easy maintenances.

13.The modular structure eases the disassembling of parts and ensures low maintenance cost.

[Applicable Working Conditions]
Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.

[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.









-------------------
