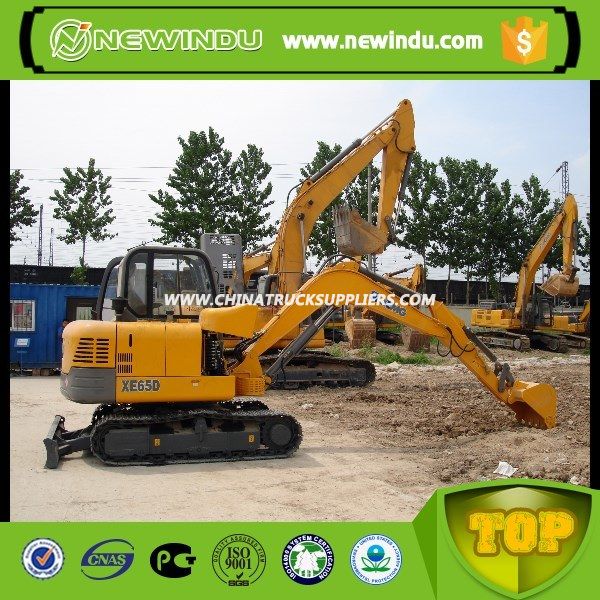

China New Brand Excavator Small Excavator Xe65D

Model

XE65D

Bucket capacity

m3

0.25

Standard bucket width

mm

Operation weight

kg

6200

Dimension(in transportation)

Overall length

mm

5860

Overall width

mm

2000

Overall height

mm

2584

Min. clearance

mm

369

Engine

Model

YANMAR 4TNV94L

Total displacement

L

3.054

Rated output power

KW/rpm

39/2200

Digging performance

Max. digging height

mm

5660

Max. dumping height

mm

3970

Max. digging depth

mm

3830

Max. vertical digging depth

mm

Max. digging radius

mm

6130

Boom deflection angle

°

Min. slew radius

mm

2452

Min. rear slew radius

mm

1660

Bucket digging force

kn

43.2

Track type

Steel

Track width

mm

400

Travel System

Track length

mm

2616

Wheel base

mm

2053

Track gauge

mm

Travel speed (Gear I/II)

km/h

4.2/2.2

Gradeability

%

58

Slew speed

rpm

12

Bulldozing plate

Bulldozing plate width

mm

2000

Bulldozing plate height

mm

363

Lifting distance

mm

Hydraulic pump type

Variable pump×1+gear pump×1

Slew motor type

Travel motor type

Fuel tank capacity

L

120

Hydraulic oil tank capacity

L

85
