Sany Official Manufacturer Sy365 36.5 Ton Hydraulic Crawler Excavator

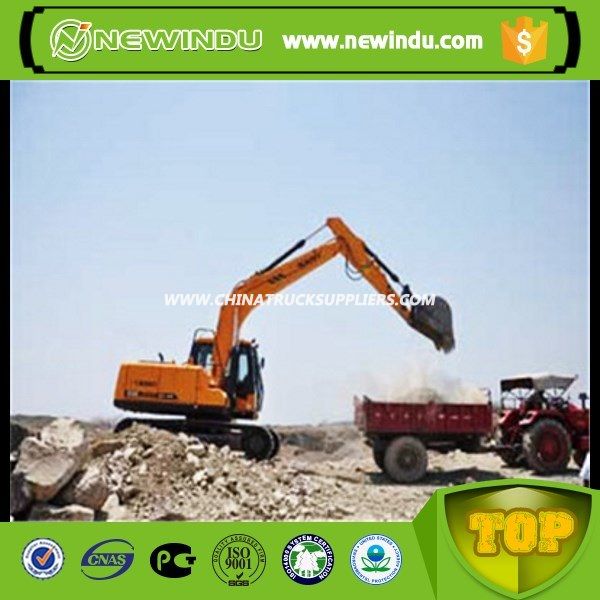

SANY Official Manufacturer Sy365 36.5 Ton Hydraulic Crawler Excavator

Product Description

Sany SY365C 36.5 ton large excavator adopts customized engine, fast speed, high fuel efficiency and comfortable operating environment, an exceptional choice for infrastructure construction.

High Efficiency &Low Consumption

Isuzu Engine Customized for SANY

With adual-pump, dual-circuit constant power control system, the engine can fully develop its power. The perfect combination of this two realizes the heavy-duty mode with large workload, the standard-mode with auto-adjusted engine speed and light-duty mode, high efficiency and low fuel consumption, while optimizing the combustion.

Faster Digging Speed and Lower Energy Loss

A quick circuit is added to the arm oil cylinder circuit. The hydraulic oil in arm cylinder rod end does not return the tank but goes directly to the cylinder head end. The arm speed is increased as aresult. The fuel consumption is lower under this condition.

Auto Deceleration System

Auto deceleration or acceleration of SY365C 35.2 ton excavator reduces fuel consumption by 5-10%. When an operation stops for 3seconds, the engine speed drops automatically to idle level and maintains the idling state. When the operation is resumed, the engine speed will increase to the set rmp within 0.1 second.

Comfortable &Safe Cab

Innovative Large Cab

The height of seat, the inclination of backrest, the height of armrest, the seat position and headrest can be adjusted as desired.

Automatic Air Conditioner

The standard large capacity air conditioner keeps in-cab air fresh by purifying fresh air and recirculation air. The quick temperature control ensures acomfortable temperature in cab all the year round.

Silicone Rubber Shock Absorber

It is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact, considerably increasing the stability of cab and improving the comfort of operator.

Ergonomic &Reliable Design

Falling Object Protection Structure

The cab is punch-formed with thick high-strength steel sheet. The door and windows are made of toughened glass. In addition to the seat belt equipped, the cabin maximizes the safety of operator.

Larger View

Narrowed blind zone of vision by means of improved cab design, column size is reduced without decreasing the structural strength of the cab. The front and side window enable the operator to see clearly the working conditions and surroundings; the rear window and the engine hood of properly designed height provide agood rear view.

High Standards Safety Design

Safety design meets European, US and Japanese safety standard, and has reached world-class security and reliability standards.

Engine model	Cummins QSL9-FR92967
Rated power	205/2200kW/rpm
Emission standard	Tier 4f
Operating weight	36100kg
Std. track shoe width	800 mm
Bucket capacity	1.5 m³
Boom length	6470 mm
Arm length	3200 mm

------------------
