China New Shantui Bulldozer Price SD13 Price
- USD 40000.90 /Unit
- 1 Unit
- 100 Unit
- 27 days

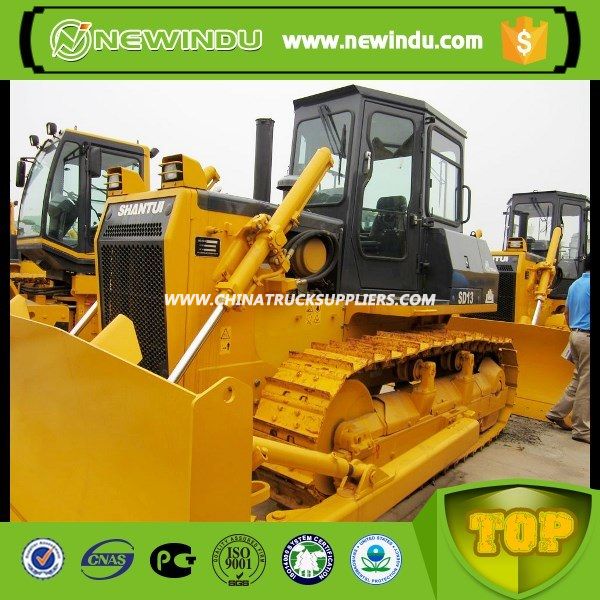

China new shantui bulldozer machine SD13 price
Feature
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with asingle control lever;
3.The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4.The single control lever can control all blade actions;
5.The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring along service life;
6.The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7.The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8.The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9.Side engine operation and the combination of adrive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
Parameters
L×W×H (Ripper not included) | mm | 4492×3185×2950 |
Operating weight (Ripper not included) | t | 13.7 |
Engine | - | Shangchai SC8D143G2B1 |
Rated power | kW/rpm | 95.5/1900 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt blade Angle blade |
Blade width | mm | Straight tilt blade 3185×1090 Angle blade 3475×915 |
Dozing capacity | m3 | Straight tilt blade 3.7 Angle blade 3.4 |
Ma× drop below ground of blade | mm | 590 |
Lift height of blade | mm | 930 |
Ripper type | - | Three-shank ripper |
Ripping depth of ripper | mm | 467 |
Lifting height of ripper | mm | 559 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 6 |
Number of track shoes (each side) | - | 38 |
Width of track shoe | mm | 460 |
Track gauge | mm | 1880 |
Ground length and ground pressure | mm/MPa | 2365-0.063 |
Pitch | mm | 190 |
Forward speed | km/h | 0-3.2 |
0-5.9 | ||
0-9.8 | ||
Reverse speed | km/h | 0-3.9 |
0-7.1 |
