Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 97 Unit
Delivery time： 13 days

Product Description

LIUGONG CLG842 IVWHEEL LOADER FOR SALE
CLG842 IV wheel loader with 15t cum engine 2.7m3 bucket 193 hp MAIN PARAMETER

Model		CLG842 IV
Bucker performance		2.7 m³
Operating weight		15200kg
Engine	emission regulation	Tier 4interim/StageIIIB
	make	Cum
	gross power	149kW (200hp) @2,200 rpm
	net power	141.55kW (190hp) @2,200 rpm
	peak torque	929N.m @1400 rpm
	displacement	6.7L
	number of cylinders	6
	aspiration	turbo air-to-air aftercooled
Transmission	Transmission Type	countershaft,power shaft
	Torque Converter	single- stage,three-element
	Maximum Travl Speed.fwd	42.1km/h
	Maximum Travl Speed.rev	26.6km/h
	number of Speed.fwd	4
	number of Speed.rev	3
Brakes	Service Breake Type	full hydraulic wet-discs brake
	Service Breake Actuation	hydraulic
	Parking Brake Type	auto and manual air controlled
	Parking Brake Actuation	hydraulic
Hydraulic system	Main pump Type	vane
	Main Relief Pressure	20Mpa
	Raise	5.8s
	Dump Time	1.1s
	Float Down Time	3.8s
	Fastest Total Cycel Time	10.7s
Loader arm performance	Tipping load-straight	12449kg
	Tipping load-Full Turn	10816kg
	Bucket Breakout Force	136kN
	Maximum Dump Angle at Full Height	45°
	Dump Clearance at full height discharge	2981mm
	Dump reach at full height discharge	1007mm
	Maximum hinge pin height	3907mm
	Maximum Digging depth,Bucket level	32mm
	Bucket rollback at ground level	43°
	Bucket rollback at carry	49°
	Bucket rollback at maximum height	60°
Dimensions	Length with bucket down	7721mm
	width over tires	2479mm
	wheelbase	3000mm
	wheel Tread	1950mm
	Ground Clearance	410mm
	Turn Angle,Either Side	40°
	Rear Angle of Departure	25°
	Turning Radius,Outside of Tire	5480mm
	Turning Radius,Center of Tire	5100mm
	Turning Radius,Bucket Carry	6029mm
Service Capacities	FuelTank	330L
	Engine Oil	17L
	Cooling System	68L
	Hydraulic Reservoir	240L
	Transmission and Torque Converter	45L
	Axles,each	36L

------------------Amanda

Mobile: +8618721040484
https://www.facebook.com/amanda.huang.44

Http://www.evangelchina.com/
Newindu E-Commerce(Shanghai) Co., Ltd&Evangelchina Construction Machinery Solutions
Address: Suite 1305, Fortune Times Tower, No. 1438 North Shanxi Road

Product Images

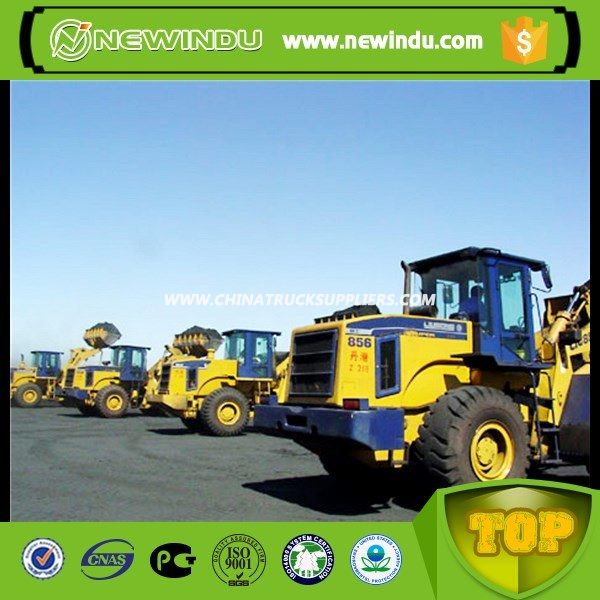

Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader Images 1
