5t Front End Wheel Loader Zl50gn

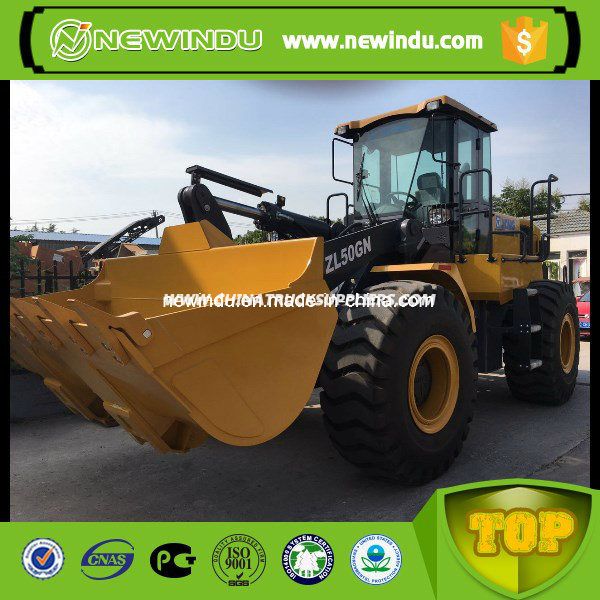

5t Front End Wheel Loader ZL50GN
Introduction
1. Fully hydraulic poered steering with flow-amplified system, Pilot operated control for loader hydraulic system, power shift and electric shift optional transmission makes convenient and flexible operating.
2. XCM new Z-bar linkage, high breakout force, short hydraulic cycle time, automatic leveling on any position, and higher prductivity.
3. Special quadrat type transmission shaft of construction machinery. Power transmission is more reliable.
4. Integral new luxury cab, excellent visibility, safety and reliability.
5. eg-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.
6. Optimized structure of diesel engine air intake system reduces dust into air filter, Prolonging the durability of the engine and conveniencing the service of air filter element. Optimized cooling system drops overall heat balance temperature.
7. Integral openable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.
8. Equipped with SHANCHAI, STYRE, or CUMMINS diesel engine, which is of electric starting, electric stopping and excellent performance and reliability.

Bucket	ZL50G
Bucket capacity	3.0M 3
Rated load	5000kg
Rated time	6 secretary
Total cycling time	11secretary
Max.drawing force	145Kn
Max.breakout force	170Kn
Articulation angle	35
Min.turn radius	6400mm
Climb ability	28
Wheel base	3300mm
Tread	2200mm
Dumping clearance	3090mm
Dumping reach	1130mm
L×W×H	8110×3000×3508mm
Operating weight	18t
Clamp type
Min.clamping diameter	φ450/φ800mm
Dumping clearance	3230mm
Dumping reach	1845mm
L×W×H	8414×2800×3460mm
Operating weight	18t

------------------
