XCMG Front Wheel Loader Lw500kn

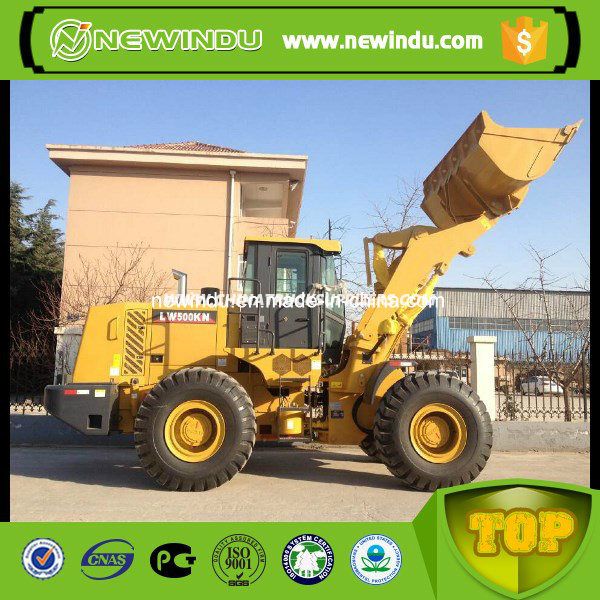

XCMG Front Wheel Loader LW500KN

Strong structure
Heavy load for the rocky condition; The working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
Excellent performance
The strong breakout force of 17 ton and strong traction of 17.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: With the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
Quick action: The total time of three devices is only 10.3s, and the speed is 11.5 km/hour during the operation.
Strong adaptation to the work site: Centered design, small turning raidus. No speed difference between front and rear wheels. The tyre is not easily worn.
Experienced drive parts
Famous brand engine; The machine adopts the latest planetary transmission with XCM multiple unique technologies, featuring high reliability and strong adaptation to heavy load; The reinforced drive shaft provides more reliable drive; The powertrain assembly made by XCM could provide the powerful guarantee for the machine to operate efficiently and reliably
With large power and high torque conservation, the famous brand engine features strong power and adaption.
Comfortable and safe driving space
Convenient maintenance
Excellent capacity

Item		LW500KLParameter	Unit
Rated load		5000	kg
Tipping load		110	kN
Bucket capacity		3.0	m
Dumping height		3090	mm
Dumping distance		1130	mm
Lifting height		5262	mm
Bucket width		3000	mm
Max.drawing force		170	kN
Max. traction		175	kN
Articulation angle		±38	°
Dimension (Length ×Width ×Height )		8185×3000×3465	mm
Operating weight		17.4	t
Boom lifting time		≤6	s
Total time of three devices		≤11	s
Wheelbase		3300	mm
Tread		2250	mm
Min. turning radius(tyre center)		5925	mm
Min. turning radius (bucket outside)		6910	mm
Rated power/rotary speed		162/2200	kW/r/min
Engine model		WD10G220E23
Gradeability		30	°
Speed	I Gear (Forward/Backward)	11/13	km/h
	II Gear (Forward)	36	km/h
Tyre specification		23.5-25-16PR

------------------
