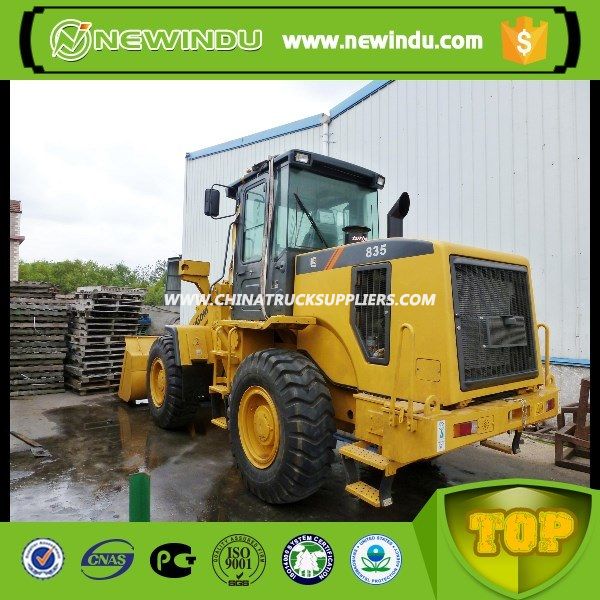

Liugong Brand Wheel Loader Clg835 for Sale

YUCHAI

CHINESE GEARBOX, A/C, PILOT CONTROL, FOPS/ROPS CABIN, 3.0CBM BUCKET

Engine:6BT5.9

Model

Yuchai

Rated load

3000Kg

Operating weight

10200Kg

Rated bucket capacity

1.7m3

Max. breakout force

90kN

Max. dump clearance

3160mm

Dump reach

1050mm

Dump angle at any position

≥45°

Digging depth(with bucket bottom horizontal)

212mm

Min. turning radius

-----Outside of bucket

5600mm

-----Outside of rear wheel

5205mm

Oscillating angle of rear axle

±11°

Lifting time of bucket

≤5.8s

Lowering time of bucket

≤3.77s

Dumping time

≤1.43s

Working Equipment

Model of oil pump

CBGj2100

System pressure

16Mpa

Model of multi-way directional valve

DF25.2C

Pilot valve

DJS2-UX/UU

Axle And Tyre

Type of main reducer

Spiral bevel gear, single stage

Gear ratio of main reducer

5.286

Type of final reducer

Single stage planetary

Gear ratio of final reducer

4.75

total ratio

25.1

Max. tractive force

93.5kN

Tyre size

17.5-25

Transmission System

Torque Converter

Type

3-elements,single stage(Shantui)

Torque ratio

3.1

Cooling type

Pressure oil circulating

Gear box

Type

Power shift(China advance)

Gear shifts(Forward/Reverse)

F4/R2

Traveling speed(Km/h)

Forward/Reverse

7.7/9.5

Forward/Reverse

13/18

Forward

25

Forward

40

Braking System

Service brake

Air over oil activate 4 wheel brake with capliar disc brake

Air pressure

0.68Mpa

Parking brake

Draper -type soft axle control

Steering System

Type

Middle articulated frame. Co-axis flow amp.steering

Model of steering pump

CBGj2050

Model of redirector

BZZ5-E400C

System pressure

14MPa

Articulated steering angle

38±1°(L/R)
