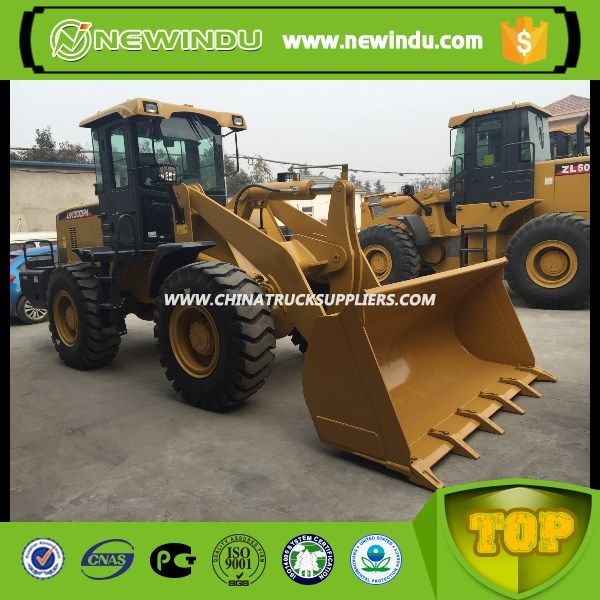

XCMG Small 3ton Lw300fn Wheel Loader

XCMG Small 3ton Wheel Loader Lw300fn Model Characteristics

It features high efficiency, energy-saving, and strong power.

The three-element torque converter and the fixed shaft power shift transmission feature

high maturity and reliability.

The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

The bucket is made of high strength material to realize high wear and impact resistance.

The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

Item	Specification	Unit
Rated operating load		3000	kg
Bucket capacity		1.5~2.5	m³
Machine weight		10600±200	kg
Dump clearance at maximum lift		2770~3260	mm
Reach at maximum lift		1010~1210	mm
Wheel base		2600	mm
Tread		1850	mm
Height of hinge at maximum lift height		3830	mm
Working height(fully lifted)		4870	mm
Max.breakout force		130	kN
Max.horse power		95	kN
Hydraulic cycle time-raise		5.5	s
Total hydraulic cycle time		10	s
Min. turning radius over tyres		5165	mm
Articulation angle		35±1	°
Gradeability		28	°
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H		7050×2482×3118
Model		WP6G125E22
Emission standards		Emission 2
Rated Power/Speed		92/2300	kW/rpm
Fuel Tank		170	L
Hydraulic Tank		170	L
	-gear(F/R)	8/10	km/h
	-gear(F/R)	13/30	km/h
Travel speed	-gear(F)	24/-	km/h
	-gear(F)	40/-	km/h

We, Newindu company( Branch of Evangel Company), which is a professional construction machinery company with over 10 years exporting experience.
Our business range is very large, hosting equipment like truck cranes, crawler crane, earthmoving equipment like excavator, loader, bulldozer, road equipment like road roller, motor grader,
logistic equipment like forklift, reach stacker,some special trucks like Dump Truck, tractor truck, concrete equipment, piling equipment like rotary drilling rig,
some successful cases of our company at http://www.evangelchina.com/home/Success/index.shtml is for your reference.

We will be happy to receive your inquiry for any machine you need. By using professional foreign trade experience, we will recommend exatcly you need with good quality and competitive price.
