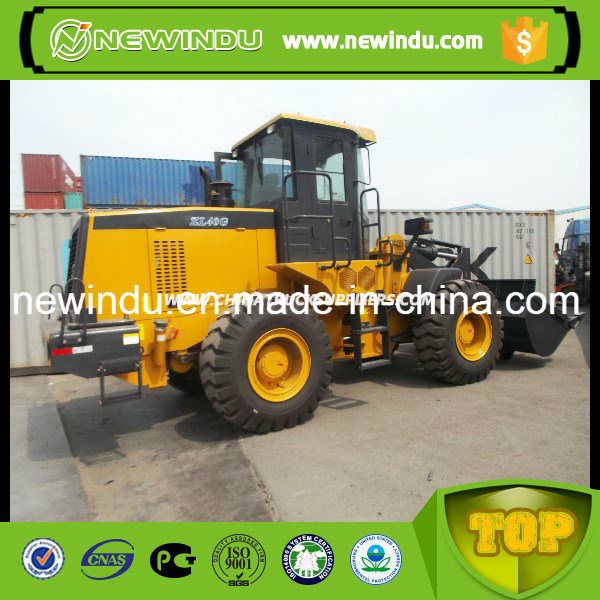

4 Ton XCMG Wheel Loader Zl40g

4 Ton XCMG Wheel Loader ZL40G
Operation weight: 15, 000kg
Rated bucket loading capacity: 4ton
Standard bucket volume (heaped): 2.4m3
Shanghai D6114 engine
Rated power/ R. P. M: 125kW/2100r/min
Planetary transmission (forward 2and reverse 1)
Pilot control
Cabin with A/C
20.5-25 tyre
Dimension: 7740*2750*3425 mm
Optional components:
Cummins Engine (Euro Itype), Hang Zhou WG180 Transmission
Optional accessories:
High lift, Log Clamp, Pallet Fork, Light bucket, Rocket bucket, Joy Stick, Automatic Center lubricating, ROPS cabin, etc
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Description		Specification	unit
Rated load		5000	kg
Raising time		<6	s
Total cycling time		<11	s
Max. traction force		145	kN
Articulation angle		35	°
Min. turning radius		6400	mm
Gradeability		28	°
Wheel base		3300	mm
Track		2200	mm
Speed
1st(F/R)		11.5/16.5	km/h
2nd(F/R)		37	km/h
Engine model		WD 615.67G3-31A(6CT8.3-C)
Rated power/rated speed		162KW/2200r/min(205HP/2200r/min)
Tyres		23.5-25
Clamp	Min.clamping diameter	Φ450/Φ800	mm
	Dump clearance	3230	mm
	Dump reach	1845	mm
	LXWXH	8414×2800×3460	mm
	Operating weight	18	t
Side dump	Bucket capacity	2.3	m 3
	Dump clearance(Downward/side)	3025/3957	mm
	Dump reach(Downward)	1192	mm
	Max.breakout force	172	kN
	(LXWXH)	8227×3000×3460	mm
	Operating weight	19.2	t
Bucket	Bucket capacity	3.0	m 3
	Dump clearance (Downward/side)	3090	mm
	Dump reacn (downward)	1130	mm
	Max.breakout	170	kN
	(LXWXH)	8110×3000×3460	mm
	Operating weight	18	t

------------------
