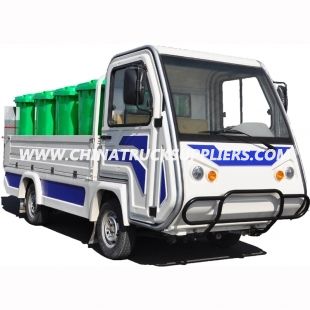

Electric Garbage Truck with Tail Gate Tipper, 1000kgs Loading Weight
- USD 10000.20 /Unit
- 1 Unit
- 94 Unit
- 19 days
Product Description
Key Components
Item | Description |
Controller | Curtis controller, 400A, imported from USA directly |
Motor | Rated power 5KW (6.8HP)DC motor |
Battery | Trojan battery, 12pcs T105+, imported from USA directly |
Charger | 2V transformed charger, input 110V-240V, 50-60HZ,output 72V/25A |
Performance
Item | Description |
Passenger Capacity | 2 |
Range (loaded) (km)* | Up to 100 |
Max.Speed (km/h) | Up to 30 |
Min.Turning radius (m) | N/A |
Max.Climbing ability(loaded) | Up to 15% |
Max.Movement after brake at speed of 20km/h | 4m |
Max.Loading weight (kgs) | 1000 |
Charging time (hour) | 8-10 |
Battery lifespan (cycles) | 750 |
* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item | Description |
Overall dimensions (mm) | 4200x1500x2150 (LxWxH) |
Rear cargo bed dimensions (mm) | N/A (LxWxH) |
Min.Ground clearance (mm) | 150 |
Wheelbase (mm) | 2370 |
Front wheel tread (mm) | 1220 |
Rear wheel tread (mm) | 1220 |
Body and frame
Item | Description |
frame &Chassis | Welded steel framework with sand blasting and painting |
Cabin | Steel frame with plastic cover sheet and glass window |
Front windshield | Laminated glass with wiper |
Seat | Reborn sponge with artificial leather, highback |
Floor | Skidproof leather |
Rear cargo bed | Steel side fender, rear foldable fender |
Side rear view mirror | 2pcs, manual adjustable |
Electric System
Item | Description |
Lights | 12V, headlight, front turning light, Rear taillight (brake light and rear turing light) |
Horn | Electric horn, 12V |
Reverse buzzer | Electric, 12V |
Combination switch | |
DC/DC converter | 72V/12V |
Audio system | Radio with MP3 receiver, with two waterproof speaker |
Digital Meter | With Current meter, voltometer, speedometer and various indicators |
Steering &suspersion
Item | Description |
Steering System | Rack and pinion steering system with automatic compensation function,with EPS |
Brake System | 4-wheel hydraulic drum brake with hand park brake |
Rear tipper | Hydraulic |
Accelerator | Resistance type, stepless speed change |
Front suspension | Fron independent suspension |
Rear suspension | Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system | Stepless spee change system, gear ratio 12.49:1 |
Wheel &Tyre | 155R12C 8PR tubeless tire, 4J*12 steel rim |
Option Accessories
To increase the sales value of our electric Garbage Truck, we also provide many optional accessories.
Item | Option description |
1 | Brake with vacuum booster |
2 | Inner rear view mirror |
3 | Battery watering pipe |
4 | Water pump (handle) |
5 | 2-point seatbelt |
6 | Emergency stop button |
7 | Warning light |
8 | Plastic doors with steel frame and glass window |
Color Options
Item | Pure white | Pure black | Pearl red |
Body | |||
Lake green | Industrial Yellow | Pearl White | |
Packing &Shipping
Electric mini truck will be packed in container assembly
Container loading qty | Assembled | Refer Picture |
20'ft GP | 1 | |
40'ft GP | 2 | |
40'HQ | 2 |
Warranty
All electric garbage trucks sold by us are quality guaranteed.
We provide 13 months warranty to our electric garbage truck from the shipping date.
Product Images
