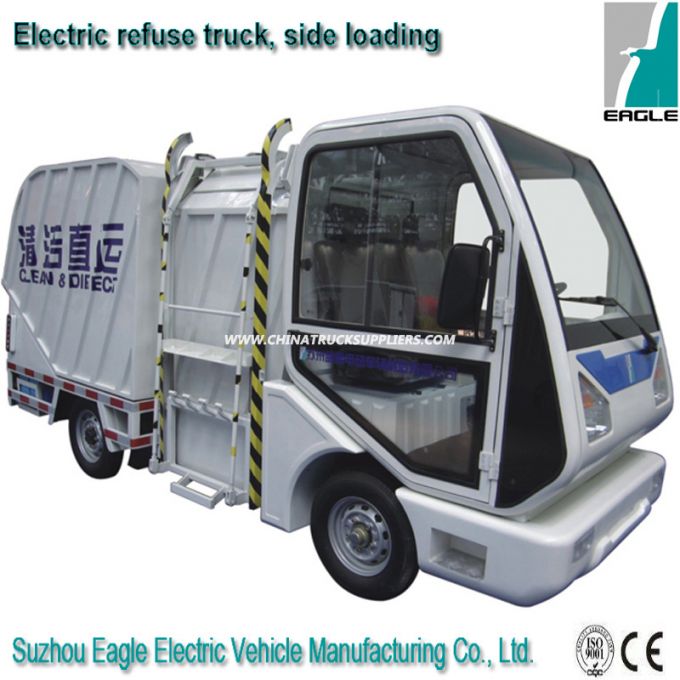

Electric Garbage Truck/Side Load (EG6042X)

  • Electric Garbage Truck/Side Load (EG6042X)
  • USD 4000.80 /Unit
  • 1 Unit
  • 42 Unit
  • 26 days
Product Description
EG6042X is Suzhou Eagle new developped electric Garbage Truck (developped in 2011).It's built based Suzhou Eagle's new electric truck (EG6032H).They shares the same chassis and other main components.Due to its characteristics of no pullution, no noise and low use cost, this electric garbage truck can be widely used in closed area like community, hotel, resort, garden, park, airport, bus station, train station, etc.For side loading, collecting and transporting garbage or waste
BatteryDeep cycle, lead acid battery, Trojan brand, imported
Motor Power6.3KW DC
ControllerCurtis brand, Series excited, imported
Passenger capacity2
Range (loaded) based on flat road at aspeed of 20km/h (km)> 70
Max.Speed(km/h)50
Minimum turning radius (m)5.3
Max.Climbing ability20%
Max.Loading weight1500kgs
Overall dimensions (mm)4550x1500X2220
Cargo bed dimensions (mm)3000x1500X1400
Body and frame
frameWelded steel framework with sand blasting+paint treatment
BodyFRP body
RoofFRP body
CabinAluminum frame +glass door
WindshieldLaminated glass
Large Seats:With backrest and headrest, sliding
FloorAnti-sliding ruber floor mat
Side rear view mirror
Electric system
Lighting system and horn2 combined front lights(headlight, turning light, position light), 2front foglight, 2taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn.
Dashboard meterVoltameter, ammeter, odometer, emergency switch;Combined switch, meter indicator
Audio SystemRadio and MP3 adaptor, with 2speakers
Wiper12V, 50W, single arm
ChargerInput 110V-240V~50Hz-60Hz, output 72V, 25A
Steering and Suspension
Steering systemRecirculating ball steering gear+ steering wheel
Brake systemFour wheel hydraulic drum brake+ parking brake
Brake assistantVaccum pump assistant
Transmission systemClutch, gear box, transimmison shaft
Front Suspension systemPlate spring +hydraulic shock absorber
Rear Suspension systemIntegrated rear end, rear plate spring +hydrualic shock absorber
Wheel &Tyre185R14C tubeless tire, 14*5.5 Jsteel rim
Color
Body Color4 standard color:Pearl white/industrial yellow/pearl red/saffron yellow
Seat ColorWhite and Tan
Others
Provides various options like:Heater, seatbelt, EPS, etc...
Product Images
Electric Garbage Truck/Side Load (EG6042X) Images 1
