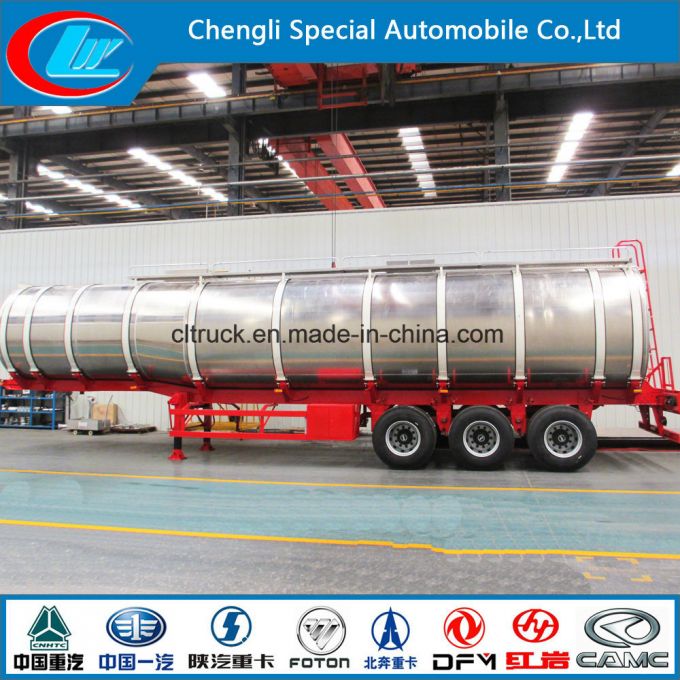

Aluminum Alloy Oil Tank Trailer 42000 Liters Fuel Tanker Trailer

Aluminum Alloy Oil Tank Trailer 42000 Liters Aluminum Fuel Tanker Trailer

Features:
1,Fuel tank applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy.
2, BPW, FUWA or L1 axle
3,Fuel tank trailerwith the famous pump.
4, Factory direct sale. Very competitive price with high quality.
5,The main parts for fuel tank trailer implements automatic welding.
6,Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
7,Fire extinguisher replaced on the back of the truck for the emergency.
8,Painting held more tolerance and coherence, can make sure the tank in good situation more than 10 years.
9,According to customer's needs.
3 Axle Aluminum 45m3 Fuel Tank Semi Trailer

Technical Parameters

Main Dimensions
Overall Length	13000mm
Overall Width	2500mm
Overall Height	3975mm
Curb Weight	7950kgs
Loading Capacity	48m3
Loading Weight	32050kgs
Tank Body
Length		12520mm
Width		2500mm
Height		2110mm
Total Volume		48 m3
Medium		Petrol
Tanker Body Material		6mm Aluminum Alloy
End plate		8mm Aluminum Alloy
Lifting Ladder		Including Top walkway and backside Aluminum material
Manhole cover		2 sets with 2 breather valves
Bottom Valve		1 set
Discharging valve		1 set
Discharging Pipe		4"rubber hose, 2pcs, 6m long
Trailer
Axle		3 axles
		Fuwa 13 Ton
Axle load		-/24000
wheel base		7000+1320+1320mm
Overhang(front/rear)		-/1680mm
Wheel track(rear)		1840/1840/1840mm
Departure angle		18°
Landing Gear		C200,Two-speed, manual operating, heavy duty landing gear
King Pin		90#
Suspension		Leaf spring suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Tire		12R22.5,12pcs + 1 spare
Other Design and parts		1. Vapor recovery system 2. Dust Board to Cover the Tires(optional) 3. Rear and side lights 4. Rear Ladder to access the top of the tanker 5. Tool Box 6. Double Spare Tire Carrier 7. 4 fire extinguisher holders 8. Overfill prevention sensor/Overfill prevention socket 9. Vapor adapter/Vapor vent valve/API loading and unloading valve

Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Tire	12R22.5,12pcs + 1 spare
Other Design and parts	1. Vapor recovery system 2. Dust Board to Cover the Tires(optional) 3. Rear and side lights 4. Rear Ladder to access the top of the tanker 5. Tool Box 6. Double Spare Tire Carrier 7. 4 fire extinguisher holders 8. Overfill prevention sensor/Overfill prevention socket 9. Vapor adapter/Vapor vent valve/API loading and unloading valve
