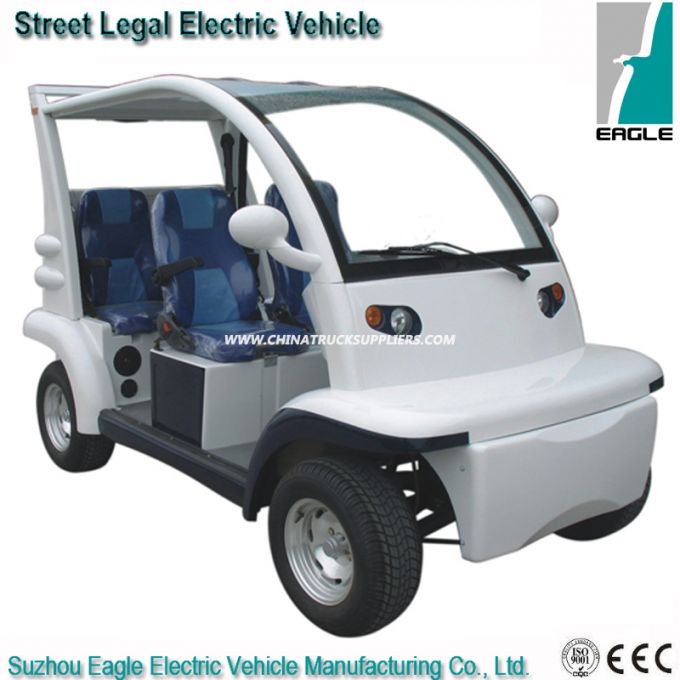

EEC Approved Electric Vehicle (EG6043KR-00, for EU Market)
- Price can be negotiated
- 1 Unit
- 89 Unit
- 17 days
Product Description
This model a standard 4 seater street legal electric vehicle, it's EEC approved. The original model of this model is EG6043K, so it inherits the characteristic of EG6043K of smooth shape. With EEC certificate, it can be driven on public road in EU countries. If you need a environment-friendly vehicle to send your kids to school, to go for shopping, to go around for short time, etc...This model is the right model for you! Enjoy your electric vehicle, contribute to the environment! !
Battery | Deep cycle, lead acid battery, Trojan brand, imported |
Motor Power | 3.8KW DC |
Controller | Curtis brand, Separate, imported |
Passenger capacity | 4 |
Range (loaded) based on flat road at a speed of 20km/h (km) | >60 |
Max. speed(km/h) | 40 |
Minimum turning radius (m) | 5.42 |
Max. climbing ability | 20% |
Max. loading weight | 360kgs |
Overall dimensions (mm) | 3060x1400x1900 |
Ground Clearance (mm) | 155 |
Body and frame | |
frame | Welded steel framework with sand blasting+paint treatment |
Body | Fibreglass |
Roof | FRP |
Windshield | Laminated |
Large Seats: | Sponge + artificial leather |
Floor | Bamboo board+ rubber |
Electric system | |
Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. All lights are EEC approved |
Dashboard meter | current meter, battery power meter, speedometer |
Audio system | Tape player with radio (12v)(including 2 water-proof speakers, wired microphone) |
Charger | input 110V-240V~50Hz-60Hz, output 48V, 25A |
Steering and Suspension | |
Steering system | Single-stage rack and pinion steering system, automatic rocker rocker compensating function |
Brake system | 4-wheel hydraulic brake + foot activated parking brake |
Drive mode | Rear axle two stage deceleration, motor direct driving |
Front Suspension system | Independent suspension, helix spring + shock absorber |
Rear Suspension system | rear plate spring + shock absorber |
Wheel & Tyre | 225/55b12 10PR tire, 12X7 aluminum wheel |
Color | |
Body Color | 5 standard color: Pure white/Pure Black/Pearl Red/Sapphire Blue/Greece Yellow/Lake Green |
Seat Color | White and Tan |
Product Images
