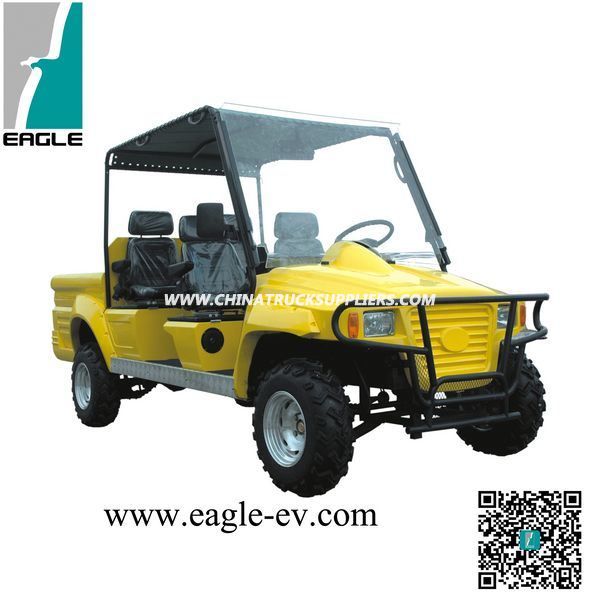

Four Wheel Utility Car with Four Seater, Eg6042A

Lifted car, 4F+1R gear box and clutch
Model:EG6042A

With 4F+1R gear box and clutch, more torque, 4seats with cargo bed, 72V system, 5KW motor, 45km/h speed

Model	EG6042A	EG6042A02
System	72V/5KW Series	72V/7.5KW AC
Key Components
Battery	12xT105(185Ah@5hr rate)	12xT105(185Ah@5hr rate)
Motor	5KW Chinese motor	7.5KW Chinese motor
Controller	Curtis 1209(400A@2minutes)	Zapi AC2(400A@2minutes)
Performance
Passenger capacity	4	4
Range (loaded) based on flat road at aspeed of 20km/h (km)*	>70	>75
Max.Speed	50	50
Minimum turning radius (m)	5.42	5.42
Max.Climbing ability (loaded)	0.2	0.2
Max.Movement after brake at speed of 20km/h	≤4m	≤4m
Max.Loading weight	620kgs	620kgs
Net weight	1136kgs	1145kgs
Dimensions
Overall dimensions (mm)	4150x1550x1950
Cargo bed dimensions (mm)	1090x1230x240 (inside)
Min.Ground clearance (mm)	190
Wheelbase (mm)	2580
Front wheel tread (mm)	1250
Rear wheel tread (mm)	1310
Detailed Configurations:("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and frame
frame	Welded steel framework with sand blasting+paint treatment
Body	Fibreglass
Roof	Fiberglass
	Steel frame+ canvas roof
Front windshield	Laminated windshield
	One-piece organic glass
2point seat belt
Large Seats:
1) backrest and cushion	Rebond seat +artificial leather
2) armrest	Formed armrest
3) Seatbelt	Retractable two point type
Floor	Bamboo board+ plastic
Cover for rear bed	Plywood+ galvanized steel plate
	Air spring
Steering wheel in wood finish
Beverage holders	1 cup drink holders
Side rear view mirror	Two pieces per cart
Inner rear view mirror	One piece per car
Battery watering system,72V system	Without water supply tool
Manual Pump	Water supply tool (other water supply tools are available)
Hand bar
Electric system
Lighting system and horn	Front headlights,front turn signals, rear turn signals, taillights( combined brake lights with reverse lights), with DC-DC converter (converting from 72V to 12V)
Reversing alarm
Horn	Normal beeper
Dashboard meter	Current meter, voltmeter, speedometer
Combined Switch	Lights system and horn
Audio System	Radio with MP3 receiver (12v)(including 2water-proof speakers, wired microphone)
	CD player to replace radio
Charger	China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A
	onboard charger,imported, 96-247V 47-65Hz, 72V/12A, 2pcs
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic brake +hand brake
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Front suspension system	Independent suspension, cylinder hydraulic vibration absorber
Rear suspension system	Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel &Tyre	12X7 steel wheel+ 24*8-12 tyre
	12x7 steel wheel +23*8.5-12 tyre
