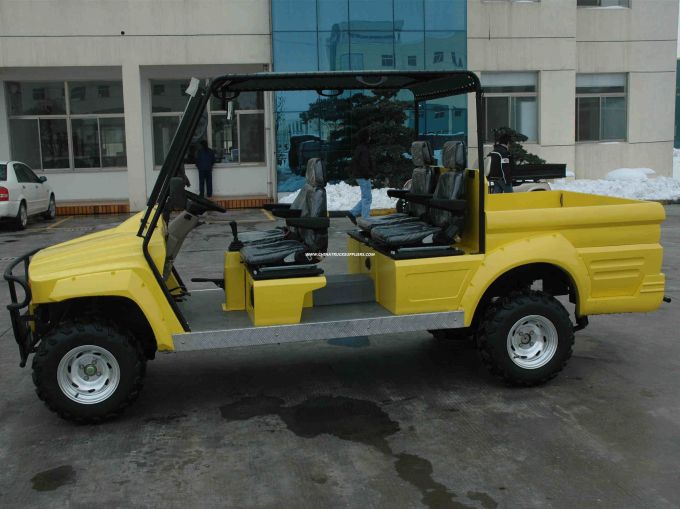

Electric Hunting Buggy Good Design High Performance Four Wheel with Cargo Box

Specifications	Model	EG6042A
Key Components	Power Source	Pure Electric
	Electric System	72V/5KW Series
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A
Performance	Passenger capacity	4
	Range (loaded) based on flat road at a speed of 20km/h (km)*	Up to 70
	Max. speed	Up to 45
	Minimum turning radius (m)	4
	Max. climbing ability (loaded)	Up to 20%
	Max. movement after brake at speed of 20km/h	≤4m
	Max. loading weight	320kgs
Dimensions	Overall dimensions (mm)	4150x1550x1950
	Min. ground clearance (mm)	415(16inch)
	Wheelbase (mm)	190
	Front wheel tread (mm)	1250
	Rear wheel tread (mm)	1310
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass
	Roof	Steel frame+ canvas roof
Electric system	Lighting system and horn	front headlights, front turn signals, rear turn signals, taillights( combined brake lights with reverse lights), with DC-DC converter (converting from 72V to 12V)
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	4-wheel hydraulic brake + hand brake
	Suspension system	Independent suspension(FW) & Integrated rear end, leaf spring + shock absorber(RW)
	Driving mode	Front axle drive and rear axle drive (4x4)
	Rear axle	Gear ratio12.49:1
	Wheel & Tyre	12x7 steel wheel + 25x8 -12 tyre
Option	2point seat belt
	steering wheel in wood finish
	CD player
Body Color	Up to 5 kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality. Eagle's sales persons can be reached in 24 hours x 365 days. Eagle's sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
