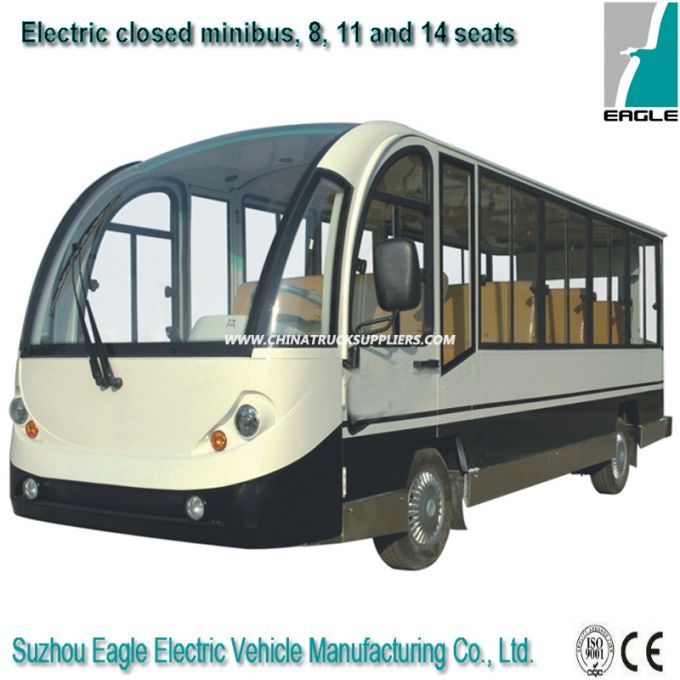

Electric Car, More Than 9 Seats, Electric, Eg6118kbf

EG6118KBF is built based on EG6118KB by adding closed hard door. It's suitable for using in all weather, especially in windy day, rainy day, snowy day and other bad weather day.
Because of its feature of no pollution and low noise, this kind of electric shuttle bus is perfect transporting vehicle in closed area such as park, resort, garden, museum, village, hotel, airport, community, big factory, pedestrian street, etc...With ten years' experience accumulation, Eagle is providing you the most suitable, reliable, comfortable electric shuttle bus. Choose Eagle's electric vehicle is your best choice! !


BatteryDeep cycle, lead acid battery, Trojan brand, imported
Motor Power5KW DC, 7KW AC, 7.5KW AC
ControllerCurtis brand, Separated/Series excited, imported
Passenger capacity11
Range (loaded) based on flat road at a speed of 20km/h (km)>50, 65, 75 depends on different configuration
Max. Speed(km/h)45
Minimum turning radius (m)5.35
Max. Climbing ability 20%
Max. Lifting weight880kgs
Overall dimensions (mm)5000x1490x2050
Ground Clearance (mm)135
Body and frame
frameWelded steel framework with sand blasting+paint treatment
BodyFRP
Hard doorSteel frame+laminated FRP sheet cover
Front WindshieldLaminated glass
Side windowSafety glass
Large Seats: Sponge + artificial leather, aluminum armrest
FloorBamboo board+ rubber
Electric system
Lighting system and hornFront: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light), with DC-DC converter (converting from 48V to 12V), horn.
Dashboard metercurrent meter, voltage meter, speedometer
Chargerinput 110V-240V~50Hz-60Hz, output 72V/48V, 25A
Steering and Suspension
Steering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Brake system4-wheel hydraulic brake + hand brake
Transmission systemClutch, 4F+1R gear box, transmission shaft/automatic drive system
Front Suspension systemindependent suspension, cylinder hydraulic vibration absorber
Rear Suspension systemintegrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel & Tyre4J*12 steel rim, 155R12, 8PR tyre, with wheel cover
Color
Body ColorPure white/Pure Black / Pearl Red/Sapphire Blue/Greece Yellow /Lake Green
Seat ColorWhite and Tan
Others
Provides various options like: Seatbelt, solar panel, aluminum rim, CD player, etc...

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	5KW DC, 7KW AC, 7.5KW AC
Controller	Curtis brand, Separated/Series excited, imported
Passenger capacity	11
Range (loaded) based on flat road at a speed of 20km/h (km)	>50, 65,75 depends on different configuration
Max. speed(km/h)	45
Minimum turning radius (m)	5.35
Max. climbing ability	20%
Max. lifting weight	880kgs
Overall dimensions (mm)	5000x1490x2050
Ground Clearance (mm)	135
Body and frame
frame	Welded steel framework with sand blasting+paint treatment
Body	FRP
Hard door	Steel frame+laminated FRP sheet cover
Front Windshield	Laminated glass
Side window	Safety glass
Large Seats:	Sponge + artificial leather, aluminum armrest
Floor	Bamboo board+ rubber
Electric system
Lighting system and horn	Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn.
Dashboard meter	current meter,voltage meter, speedometer
Charger	input 110V-240V~50Hz-60Hz, output 72V/48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic brake + hand brake
Transmission system	Clutch, 4F+1R gear box, transmission shaft/automatic drive system
Front Suspension system	independent suspension, cylinder hydraulic vibration absorber
Rear Suspension system	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel & Tyre	4J*12 steel rim, 155R12,8PR tyre, with wheel cover
Color
Body Color	Pure white/Pure Black / Pearl Red/Sapphire Blue/Greece Yellow /Lake Green
Seat Color	White and Tan
Others
Provides various options like: seatbelt, solar panel, aluminum rim, CD player, etc..
