Enclosed Shuttle Bus, 14 Seats Electric Eg6158kf, Sightseeing Car

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 83 Unit
Delivery time： 17 days

Contact Supplier

Product Description

Quick Details

Power:Electric
Place of Origin:Jiangsu, China (Mainland)
Brand Name:Eagle
Model Number:EG6158KF04
Description:14 seats electric enclosed shuttle bus
Voltage:72V
Motor:7.5KW AC maintenance free motor
Battery:185Ah lead acid battery or AGMmaintenance free battery
Packaging Details: Container loading qty Disassembled Assembled Qty/20' / 1unit Qty/40' / 2units Qty/40'HQ / 2units
Delivery Detail: Four Weeks after getting your down payment

Specifications Model EG6158KF04 (14 seats electric enclosed shuttle bus)
Key Components Power Source Pure Electric
Electric System AC high efficient system
Battery 185Ah Trojan battery or AGM maintenance free battery
Motor 7.5KW AC maintenance brushless motor
Controller Curtis controller
Charger China origin, input 110V-240V~50Hz-60Hz,
Performance Passenger capacity 14
Range (loaded) based on flat road at a speed of 20km/h (km)* Up to 70
Max. speed Up to 50
Minimum turning radius (m) 5.35
Max. climbing ability (loaded) Up to 25%
Max. movement after brake at speed of 20km/h ≤4m
Max. loading weight 1120kgs
Dimensions Overall dimensions (mm) 5000x1490x2050
Min. ground clearance (mm) 135
Wheelbase (mm) 2710
Front wheel tread (mm) 1222
Rear wheel tread (mm) 1185
Body and frame frame Welded steel framework with sand blasting+paint treatment
Body Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
Roof Fibreglass+aluminum frame, with roof handle
Electric system Lighting system and horn Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn.
Steering and Suspension Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system Four wheel hydraulic drum brake+hand parking brake
Suspension system Front suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber
Driving mode Clutch, 4F+1R gear box, transmission shaft
Rear axle Integrated
Wheel & Tyre 4J12 Steel wheel, wheel cap, 155R12,8PR
Options 2point seat belt
New seat
Formed seat&backrest vinyl
Inner rear view mirror
License plate light
CD player to replace MP3 receiver
Microphone Wired
with water sprayer
Solar panel
On-board charger
Right hand drive system
Electrical power steering
Front disc brake and rear drum brake, with vacuum booster
4J12 Aluminum wheel,
Body Color Up to 6 kinds of standard color for option
Loading only Assembly is available

Packaging Details:	Container loading qty Disassembled Assembled Qty/20' / 1unit Qty/40' / 2units Qty/40'HQ / 2units
Delivery Detail:	Four Weeks after getting your down payment

Product Images

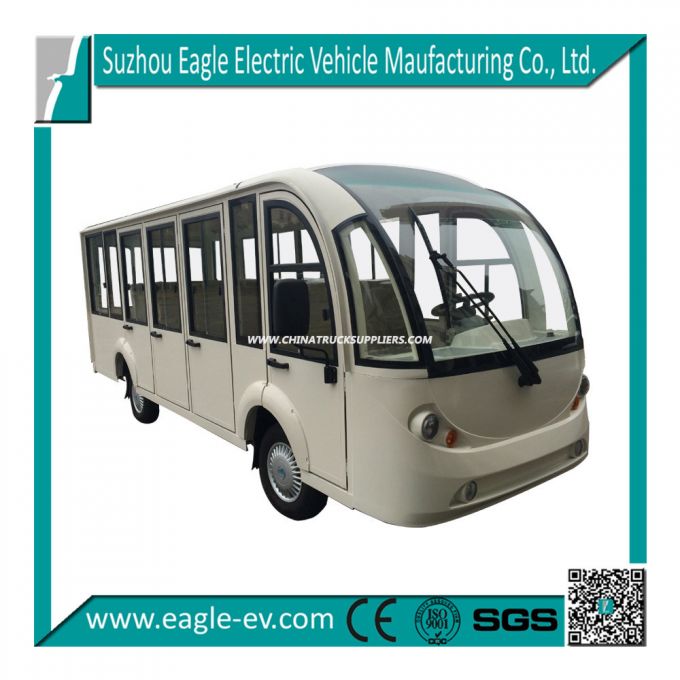

Enclosed Shuttle Bus, 14 Seats Electric Eg6158kf, Sightseeing Car Images 1

Get the latest price? We'll respond as soon as possible(within 12 hours)

Specifications	Model	EG6158KF04 (14 seats electric enclosed shuttle bus)
Key Components	Power Source	Pure Electric
	Electric System	AC high efficient system
	Battery	185Ah Trojan battery or AGM maintenance free battery
	Motor	7.5KW AC maintenance brushless motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	14
	Range (loaded) based on flat road at a speed of 20km/h (km)*	Up to 70
	Max. speed	Up to 50
	Minimum turning radius (m)	5.35
	Max. climbing ability (loaded)	Up to 25%
	Max. movement after brake at speed of 20km/h	≤4m
	Max. loading weight	1120kgs
Dimensions	Overall dimensions (mm)	5000x1490x2050
	Min. ground clearance (mm)	135
	Wheelbase (mm)	2710
	Front wheel tread (mm)	1222
	Rear wheel tread (mm)	1185
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
	Roof	Fibreglass+aluminum frame, with roof handle
Electric system	Lighting system and horn	Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Four wheel hydraulic drum brake+hand parking brake
	Suspension system	Front suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber
	Driving mode	Clutch, 4F+1R gear box, transmission shaft
	Rear axle	Integrated
	Wheel & Tyre	4J*12 Steel wheel, wheel cap, 155R12,8PR
Options	2point seat belt
	New seat
	Formed seat&backrest vinyl
	Inner rear view mirror
	License plate light
	CD player to replace MP3 receiver
	Microphone Wired
	with water sprayer
	Solar panel
	On-board charger
	Right hand drive system
	Electrical power steering
	Front disc brake and rear drum brake, with vacuum booster
	4J*12 Aluminum wheel,
Body Color	Up to 6 kinds of standard color for option
Loading	only Assembly is available
