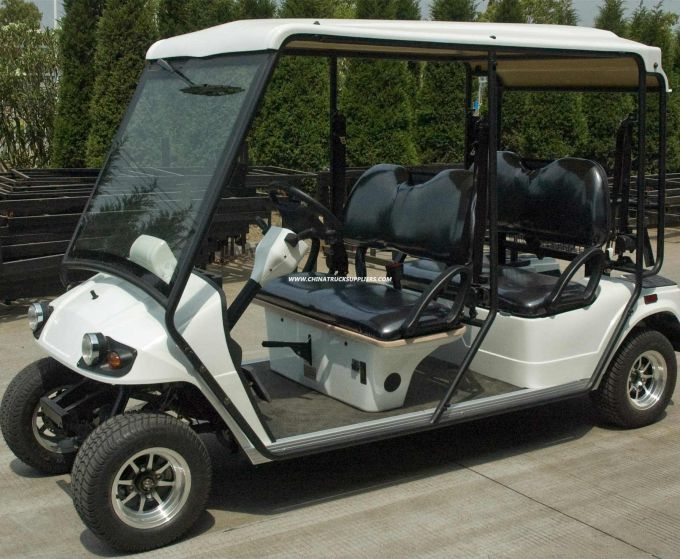

EEC Lsv Street Legal Vehicle off Road Hunting Buggy

Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China.In 2003, we were approved by ISO9001.In 2006, we were approved by WMI quality system to get our own VIN.

Model	EG2048KR	EG2048KR-02
System	48V/5.3KW Sepex	48V/5KW AC Sepex
Battery	8PCSxT105(185Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)
Motor	5.3KW Chinese motor for 60minutes	5KW Chinese motor for 60minutes
Controller	Curtis 1268 (400A@2minutes)	Curtis 1236 (400A@2minutes)
Passenger capacity	4	4
Range (loaded) based on flat road at aspeed of 20km/h (km)	>80	>100
Max.Speed(km/h)	40	40
Minimum turning radius (m)	4.5	4.5
Max.Climbing ability (loaded)	20%	20%
Max.Movement after brake	≤ 4m	≤ 4m
Max.Loading weight	300kgs	300kgs
Net weight	3620kgs	620kgs
Overall dimensions (mm)	3150*1200*1850	3150*1200*1850
Min.Ground clearance (mm)	120	120
Wheelbase (mm)	1700	1700
Front wheel tread (mm)	855	855
Rear wheel tread (mm)	975	975
