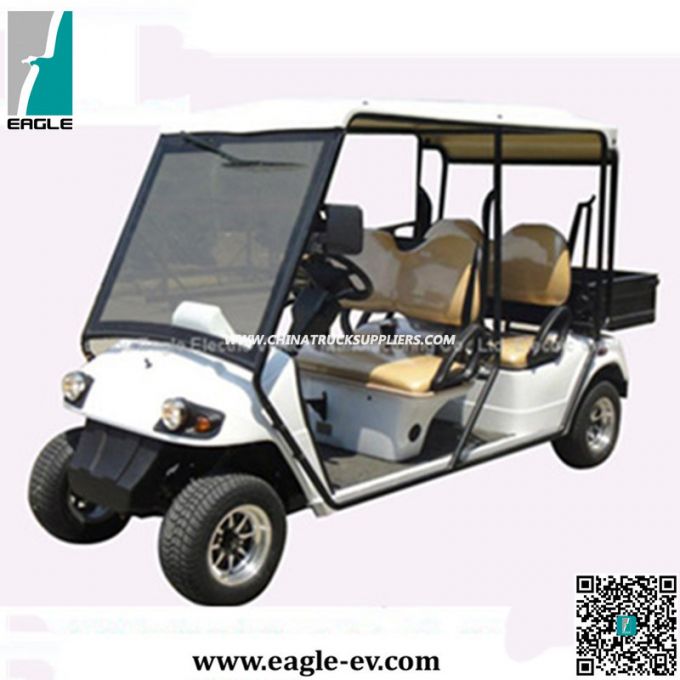

Electric Utility Car, Road Legal, with Cargo Bed EEC Homologated

EEC homologated road legal utility car EG2048HR is built based on golf utility car model EG2048H. It's homologated based on EU standards under category L7e. It can be driven on public road with maximum speed of 40km/h. It can be a small electric cargo carry vehicle.

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	5.3KWDC / 5KW AC
Controller	Curtis brand, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>80-100 depends on DC and AC system
Max. speed (km/h)	40
Minimum turning radius (m)	4.5
Max. climbing ability	20%
Max. loading weight	450kgs
Overall dimensions (mm)	3400*1200*1850
Body and frame
frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	Fibreglass
Windshield	one-piece Laminated glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Rear cargo box	Manual lifted steel box
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm
Meter	speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Four wheel hydraulic brake, front disc, rear drum brake, with parking brake
Accelerator	Stepless speed change
Suspension system	Front independent suspension, Rear Integrated Axle
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
Color
Body Color	6 standard color: Pure white/Pure Black/Champagne/Coca Cola Red/Navy Blue/metallic Green
Seat Color	2 standard color: white and tan
Others
Provides various options like:wood finish dashboard/backrest cover/steering wheel, onboard charger.
