Four Seats Passenger Mover, Passenger Carrier, Bubble Car
- USD 5000.10 /Unit
- 1 Unit
- 67 Unit
- 12 days
Product Description
Electric four seats personal carrier with CE approved, also can be upgraded as USA LSV
Specifications | Model | EG6043K |
Key Components | Power Source | Pure Electric |
Electric System | 48V system(DC Series& Sepex& AC Sepex) | |
Battery | Trojan battery | |
Motor | Chinese Motor | |
Controller | Curtis controller | |
Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
Performance | Passenger capacity | 4 |
Range (loaded) based on flat road at aspeed of 20km/h (km)* | Up to 100 | |
Max.Speed | Up to 40 | |
Minimum turning radius (m) | 4 | |
Max.Climbing ability (loaded) | Up to 25% | |
Max.Movement after brake at speed of 20km/h | ≤4m | |
Max.Loading weight | 320kgs | |
Dimensions | Overall dimensions (mm) | 3050x1400x1800 |
Min.Ground clearance (mm) | 140 | |
Wheelbase (mm) | 2040 | |
Front wheel tread (mm) | 1143 | |
Rear wheel tread (mm) | 1143 | |
Body and frame | frame | Welded steel framework with sand blasting+paint treatment |
Body | Fibreglass | |
Roof | Fibreglass+steel frame | |
Electric system | Lighting system and horn | 2 headlights, 2front turn signals, 2rear turn signals and 2rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. |
Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
Brake system | Four wheel hydraulic drum brake+foot parking brake | |
Suspension system | Independent suspension, helix spring +shock absorber(FW) &rear plate spring +shock absorber(RW) | |
Driving mode | Rear axle two stage deceleration, motor direct driving | |
Rear axle | Gear ratio12.49:1 | |
Wheel &Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap | |
Option | 3point seat belt | |
Microphone | ||
Rear storage box | ||
Inner rear view mirror | ||
Rain cover | ||
CD player | ||
Solar panel | ||
On-board charger | ||
Integrated, Gear ratio10.25:1 | ||
10X6 Aluminum Wheel | ||
Body Color | Up to 6kinds of standard color for option | |
Loading | Both Assembly and Disassembly are available |

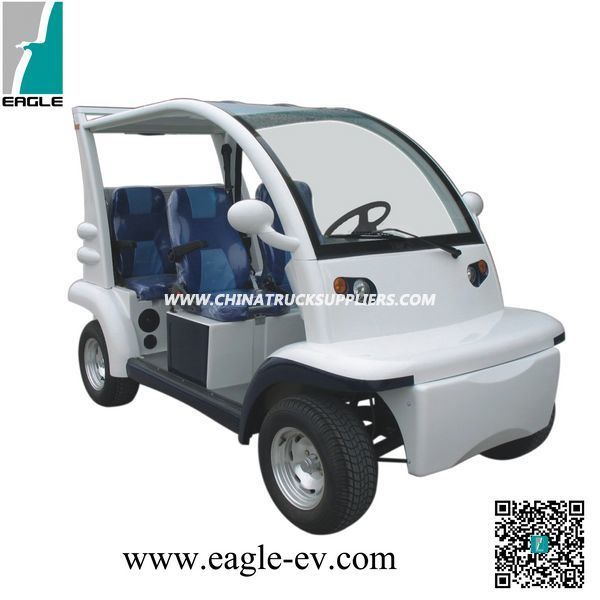

Product Images
