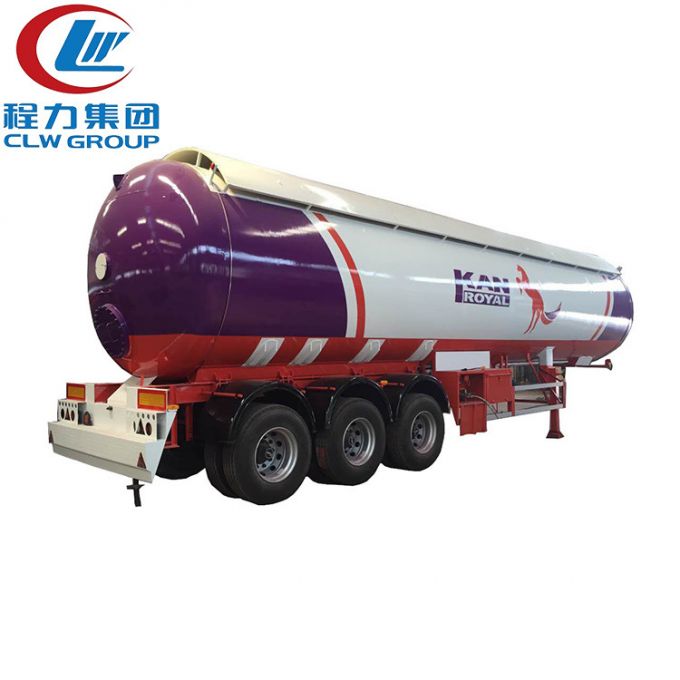

56m3 LPG Gas Transport Truck Trailer for Sale

56m3 LPG Gas Transport Truck Trailer for Sale

Specification of the 56CBM LPG Semi-trailer
Items		Data		Items			Data
Semi trailer				Tank
Curb weight		15480kg		Design pressure			1.61Mpa
Payload		23520kg		Design temperature			50 ºC
G.V.W.		39000kg		Filling medium			LPG
Capacity		56m3		Tank material			Q345R
Wheel base		6865+1310+1310mm		Corrosion allowance			1.0 mm
External Dimensions		12700x2500x3975mm		Hydraulic test pressure			2.22Mpa
Full load	Fifth wheel load	15800kgs		Thickness of material		Tank	12mm
	Rear axle load	3x13000kg				Cover	12mm ellipse
Design the limited velocity	Straight road	80 Km/h		Vessel's sort		The third kind
	Turning	20 Km/h		Service year		10 years
Emergence cutting valve				Safe valve
Nominal pressure		PN2.5Mpa		Model			Inner full lift
Nominal diameter	Gas phase	DN 25mm		Nominal pressure			PN2.5 Mpa
	Liquid phase	DN 50mm		Nominal diameter			DN80mm
Operation way		Mechanical type		set-pressure			1.77 Mpa
Closing time		≤10 Sec		Rated relieving pressure			<1.93 Mpa
Melt switch temperature		70±5ºC
Level meter				Inlet and outlet
Model		Handle Rotary type		Model	Quick tie-in
Nominal pressure		PN2.5Mpa		Nominal diameter	Gas phase			DN25mm
Surveying range		50~2300mm			Liquid phase			DN50mm
Precision		2.5 Grade
Standard configuration		3 axles with BPW bridge (13T), 12R22.5 12PR(13 pcs), JOST king pin, JOST leg(25T), ball floating liquid level meters, double pressure meter, double thermometer, double emergency cutting valve, four ball valve, double safe valve, two tool boxes, single outlet, double loading and unloading system, aluminum sunshade protection, 2 sets 9kg fire extinguishers type ABC, 1 set 2kg fire extinguisher type CO2, 3 sets danger sign plate, 2 sets orange numbered plate.

about Our Company

Our factory is aprofessionalLPG tank manufacturerin China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of LPGTrucks, LPGSemi-trailersand LPGStorage Tanks.

1.The biggest LPG Truck's valid volume is35.5cbm
2.The biggest LPG trailer's valid volume is59.52cbm;Low transport costs, more profit.
3.Our LPG storage tank is ranged from10cbm to 100cbm, both ground and underground.

We CLW HeavyIndustryCo.,Ltdare aprofessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.
Allour products comply with theinternational quality standardsand are greatly appreciated in avariety of markets around the world likeAfrica, North America, Middle East, Australiaand so on.

CLW HeavyIndustryCo.,Ltdalso provide products as follows:

1.LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water Truck /Water Tank Truck /Water Sprinkler Truck/Water Tanker
3.Truck with crane /Truck Mounted Crane
4.Dump Truck /Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck /Fire Truck /Fire Vehicle
6.Concrete Mixer Truck
7.Van truck /Blasting equipment transporter/ Refrigerated truck
8.Fecal suction truck /Sewage Suction Truck
9.Cement Powder Tank truck/ Bulk Cement Truck
10.High-altitude operation truck
11.Self-loading Garbage Truck, garbage compactor truck,sealed garbage truck
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15.Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc.)

FAQ

1.Q:How about the quality of trucks of your factory?
A:Our trucks getISO 9001:2008 and CCC, B&Vand other relatedcertificates.The chassis and spare parts come from the original manufacturers with anti-fake label.

2.Q:How many years of your company's service, especially after-sale service?
A:CLW HeavyIndustryCo.,Ltdhas been in this field fornearly 15 yearsand has strong production and distribution capability, we can produce your products in 15 working days.We offer 1year after-sale service.

3.Q:Is there any advantages of your price?
A:CLW HeavyIndustryCo.,Ltdis one of the most important suppliers ofSinotruk, Shacman, Dongfeng, FOTON and FAW,which provides guarantees for reasonable price and good quality.

4.Price term:FOB, CIF.

5.Payment:30% deposit after order /confirm/iation, 70% balance should be paid before delivery.All byT/T,L/C.

6.Delivery time:25 working daysafter payment is received.

7.Standard Steering:Left-hand drive,if you need Right-hand drives, please inform us, will make specialorder for you.

You are warmly welcome to visit our factory.
