Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

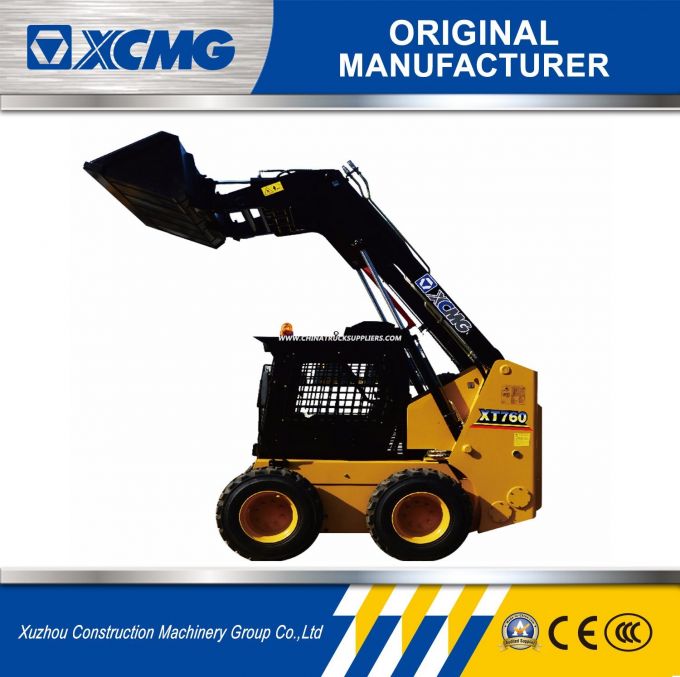

XCMG Official Xt760 Skid Steer Loader(more model for sales)
Rated Power:
60kW 81HP @2,300rpm
Operating Weight:
3,670kg 8,091lb
Bucket capacity:
0.6m3 0.78yd3
Rated Load:
1,100kg 2,425lb
Dimensions(L×W×H):
3,690mmX2,000mmX1,960mm
12'1'''X6'7''X6'5''
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
XCMG Official Xt760 Skid Steer Loader(more model for sales)
Rated Power:
60kW 81HP @2,300rpm
Operating Weight:
3,670kg 8,091lb
Bucket capacity:
0.6m3 0.78yd3
Rated Load:
1,100kg 2,425lb
Dimensions(L×W×H):
3,690mmX2,000mmX1,960mm
12'1'''X6'7''X6'5''
| Description | Specifications | Unit |
| XT760 | ||
| Engine Model | Deutz Weichai | |
| Rated power/speed | 60/2300 | Kw/rpm |
| Bucket capacity | 0.6 | m3 |
| Rated load | 1100 | kg |
| Operating weight | 3670 | kg |
| Dumping clearance | 2405 | mm |
| Dumping reach | 680 | mm |
| Max. travel speed | 12 | Km/h |
| Front turning radius without bucket | 1330 | mm |
| Front turning radius with bucket | 2290 | mm |
| Ground clearance | 182 | mm |
| Diesel fuel tank capacity | 80 | L |
| Tire model | 12.0-16.5 | |
| Overall dimensions(L*W*H) | 3690*2000*1960 | mm |
